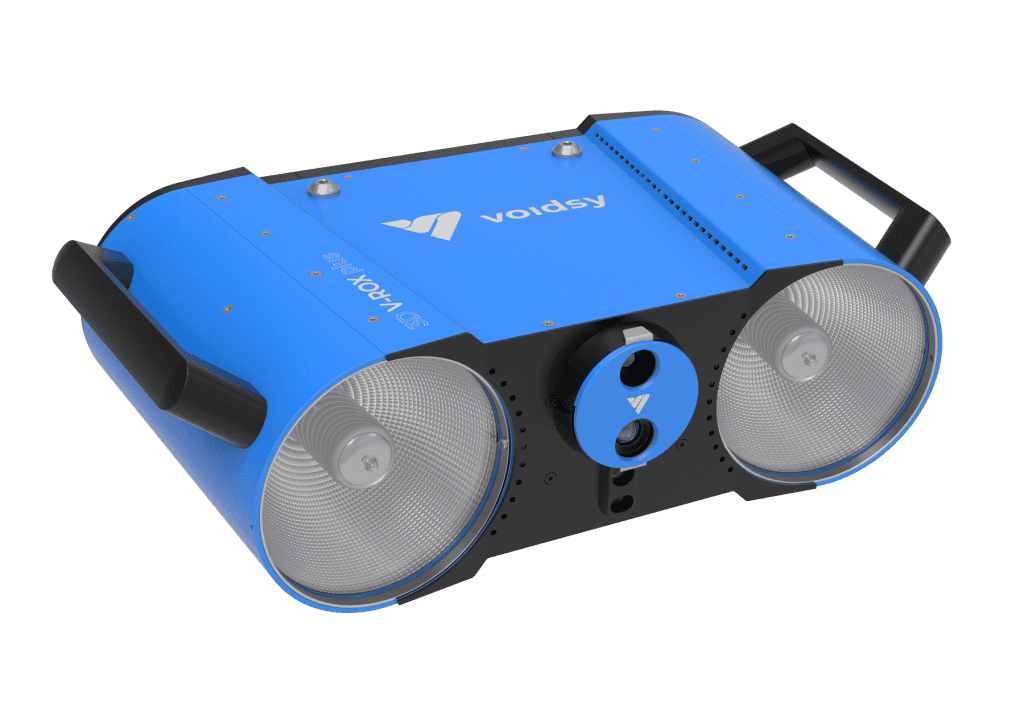

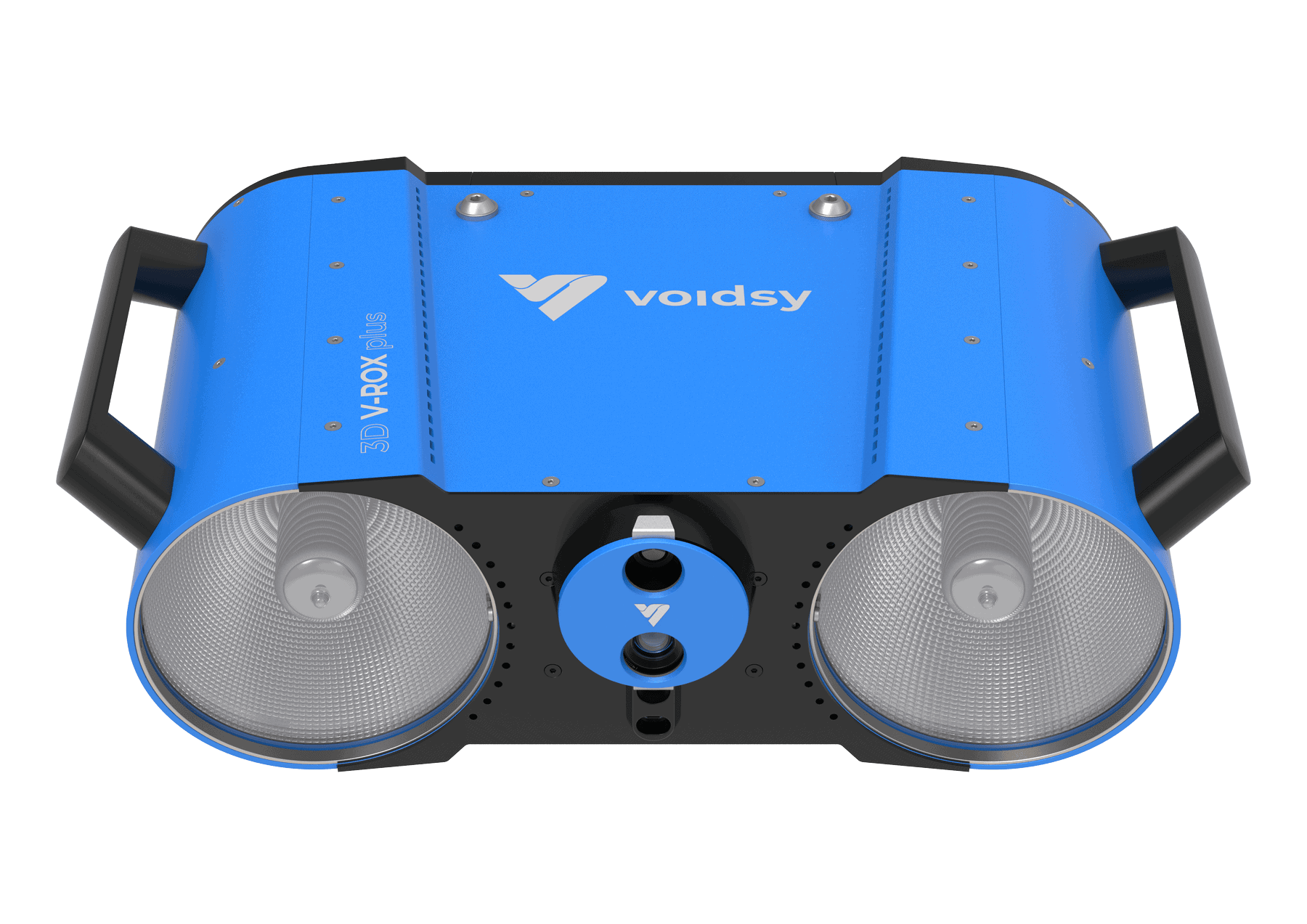

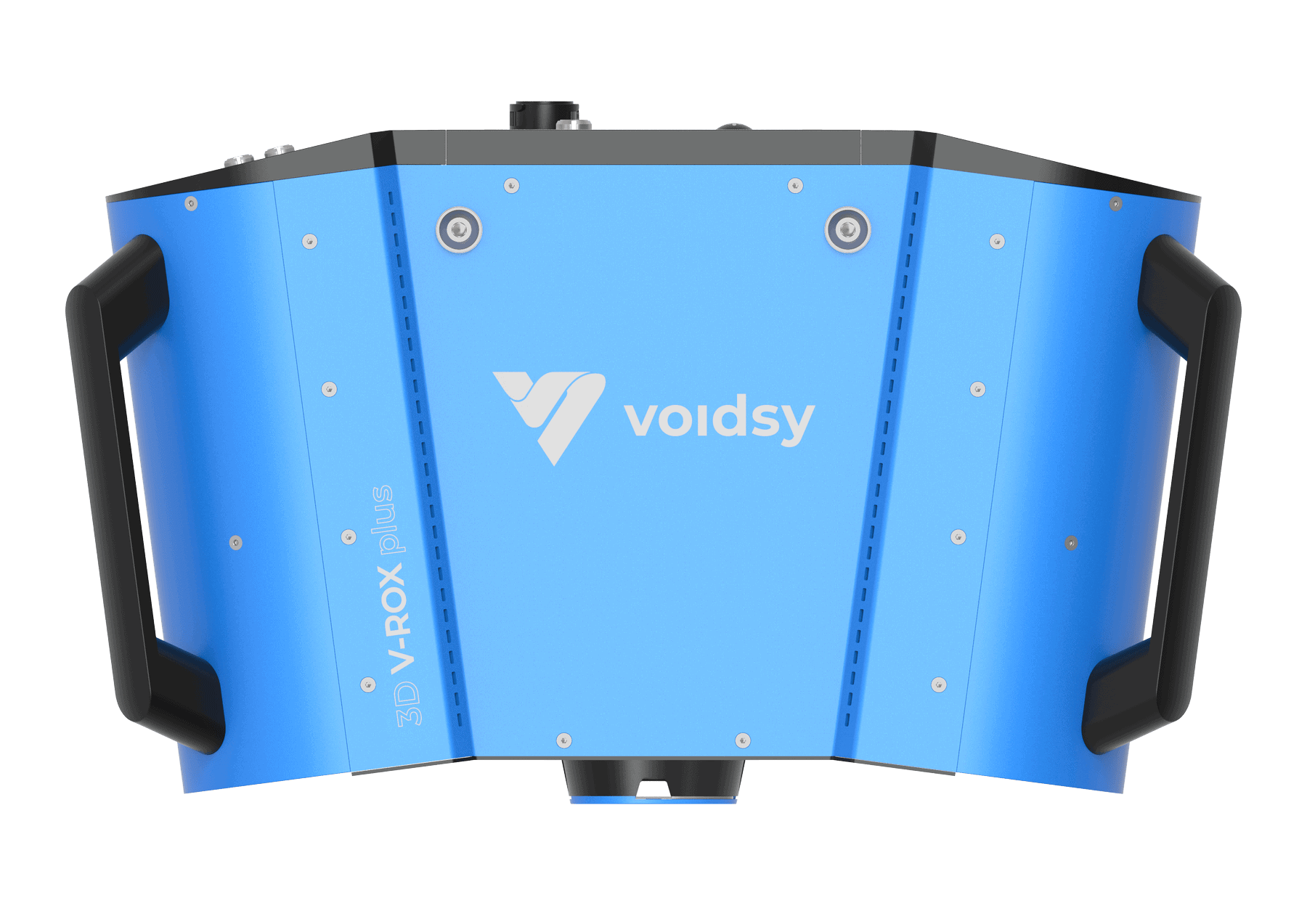

voidsy 3D V-ROX plus

Maximum Inspection Performance through 3D Analysis and Assistance Systems

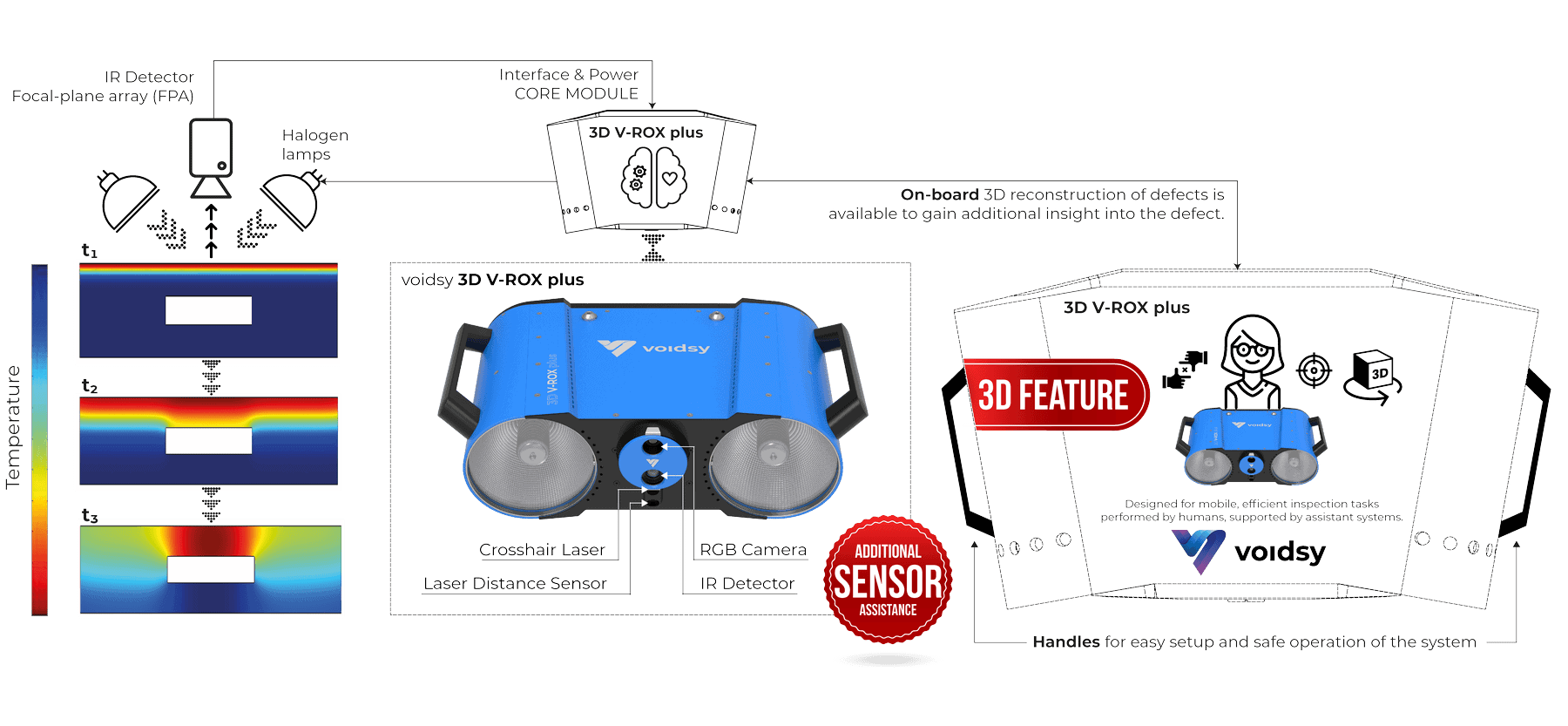

The voidsy 3D V-ROX plus combines advanced thermographic 3D defect analysis with integrated operator assistance systems. The platform enables highly precise evaluation of defect structures and depth information. Its compact and mobile design makes it particularly suitable for demanding inspection scenarios across industrial and field applications.

Applications and Benefits

Advanced inspection tasks with maximum analysis requirements
Mobile inspections with high result reliability
Guided and reproducible inspection workflows

Recommended software: voidsy Inspect Professional

Watch 3D V-ROX plus Demo

Request Whitepaper for free

System Benefits

3D Defect Analysis

Spatial visualization for detailed insight into defect structure and depth

Assisted Inspection Workflows

Integrated assistance systems for precise positioning and execution

Maximum Flexibility

Mobile deployment across different inspection tasks and application environments

Integrated System Solution

Analysis, operator guidance and efficient inspection workflows within one platform

Technical Specifications

System

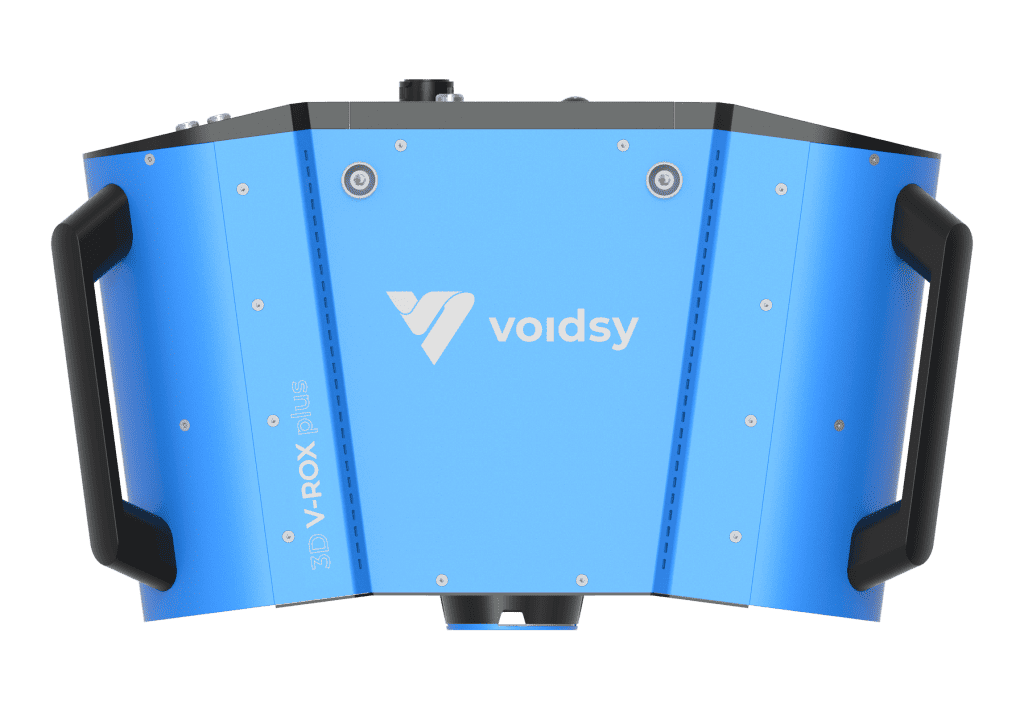

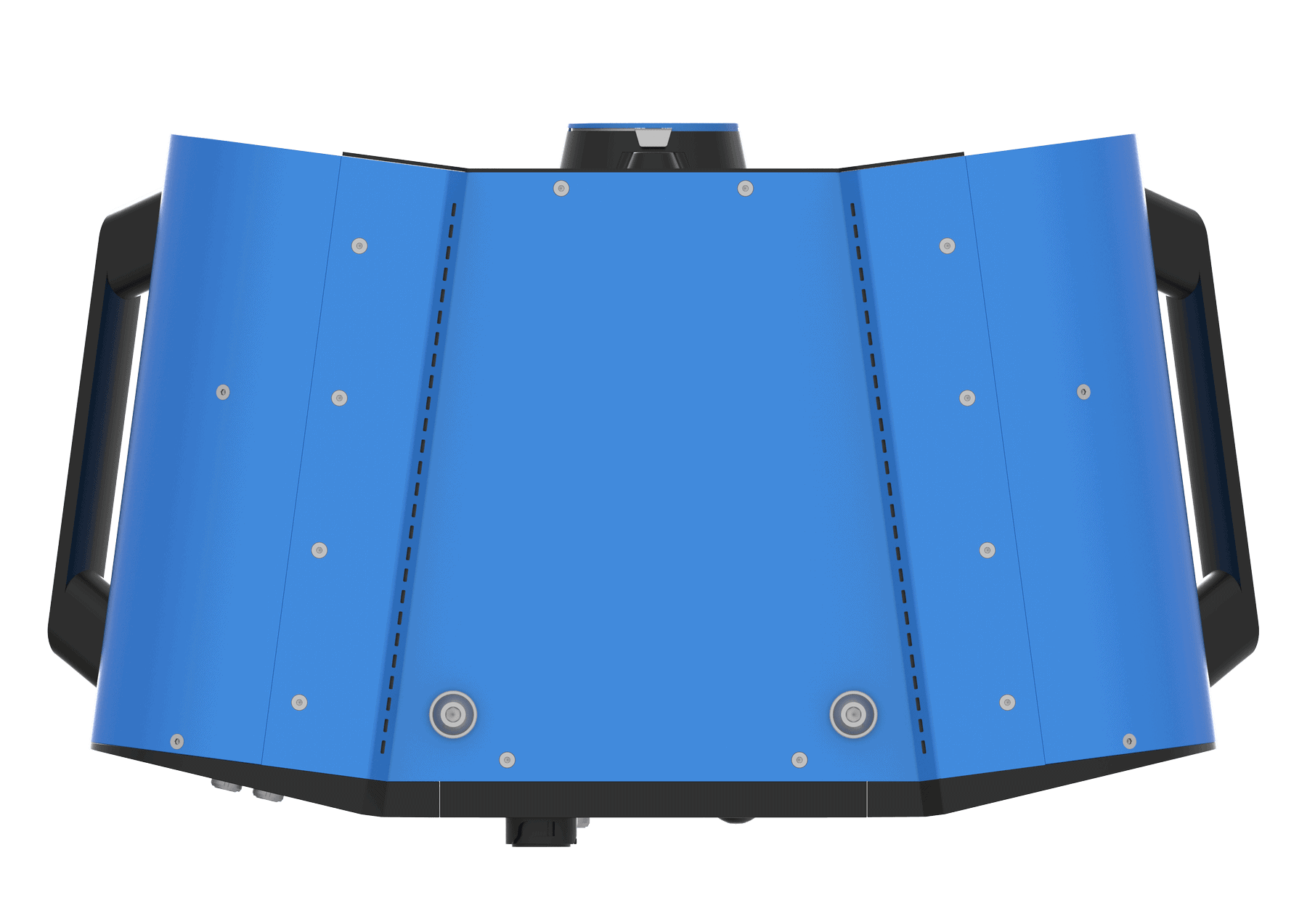

Compact sensor head: 423 mm × 270 mm × 130 mm
Total weight: < 6.5 kg

Inspection Parameters

Spatial resolution / depth resolution: up to 610 μm / 100 μm
Inspection area: up to 400 mm × 320 mm

Power Supply

4.3 kW @ 230/400 V~ / 50 Hz or
4.3 kW @ 230 V~ / 50 Hz or
4.6 kW @ 120/240 V~ / 60 Hz

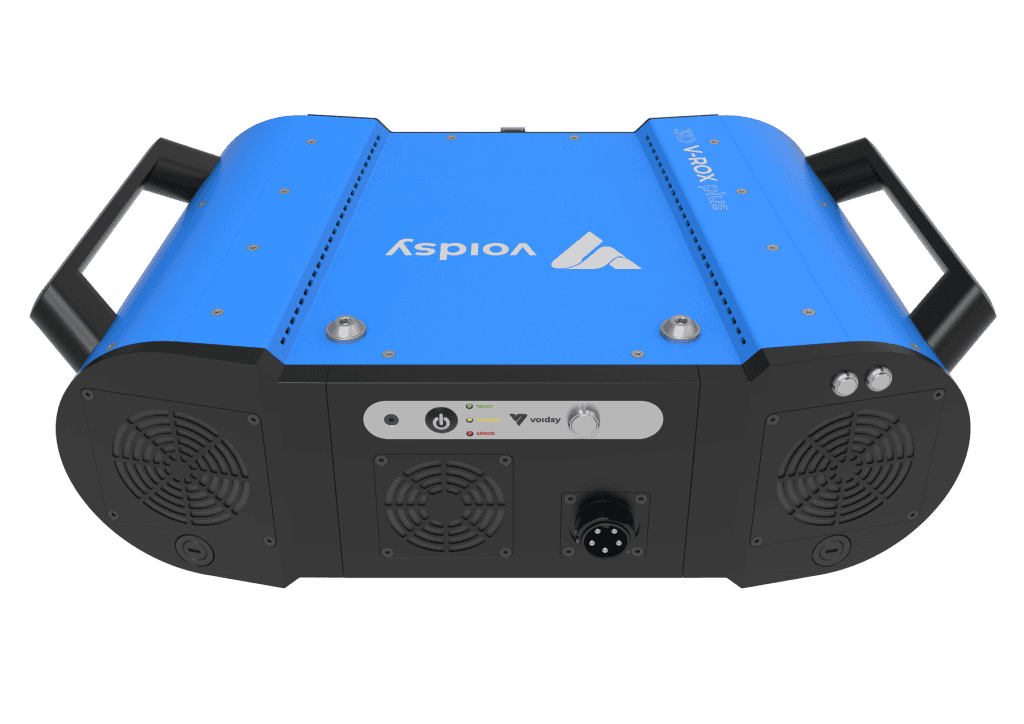

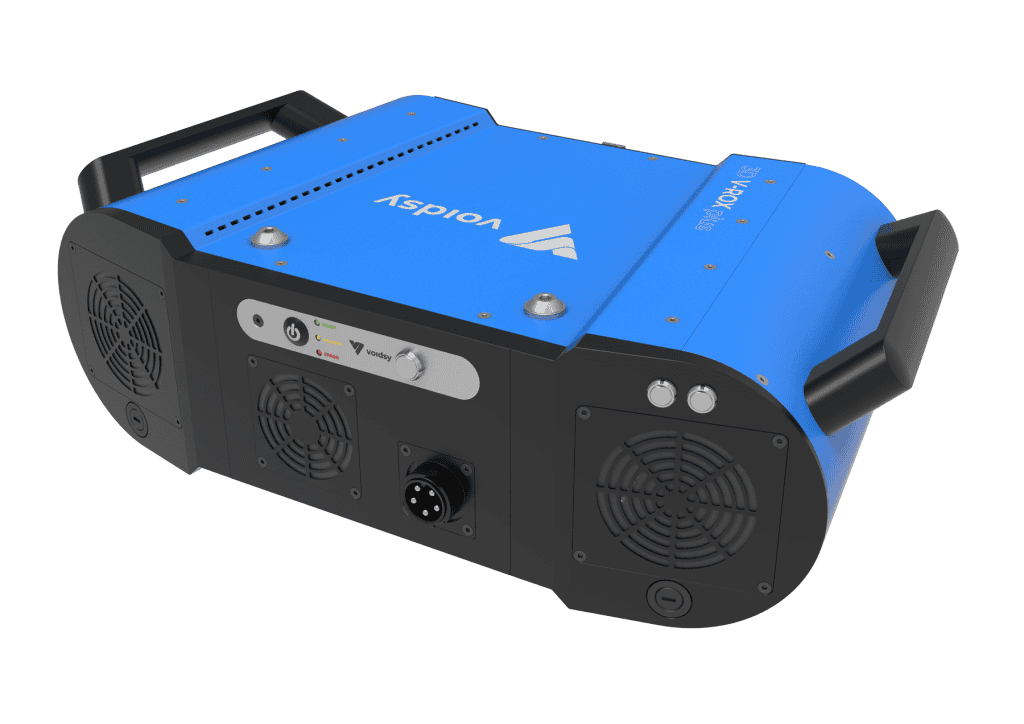

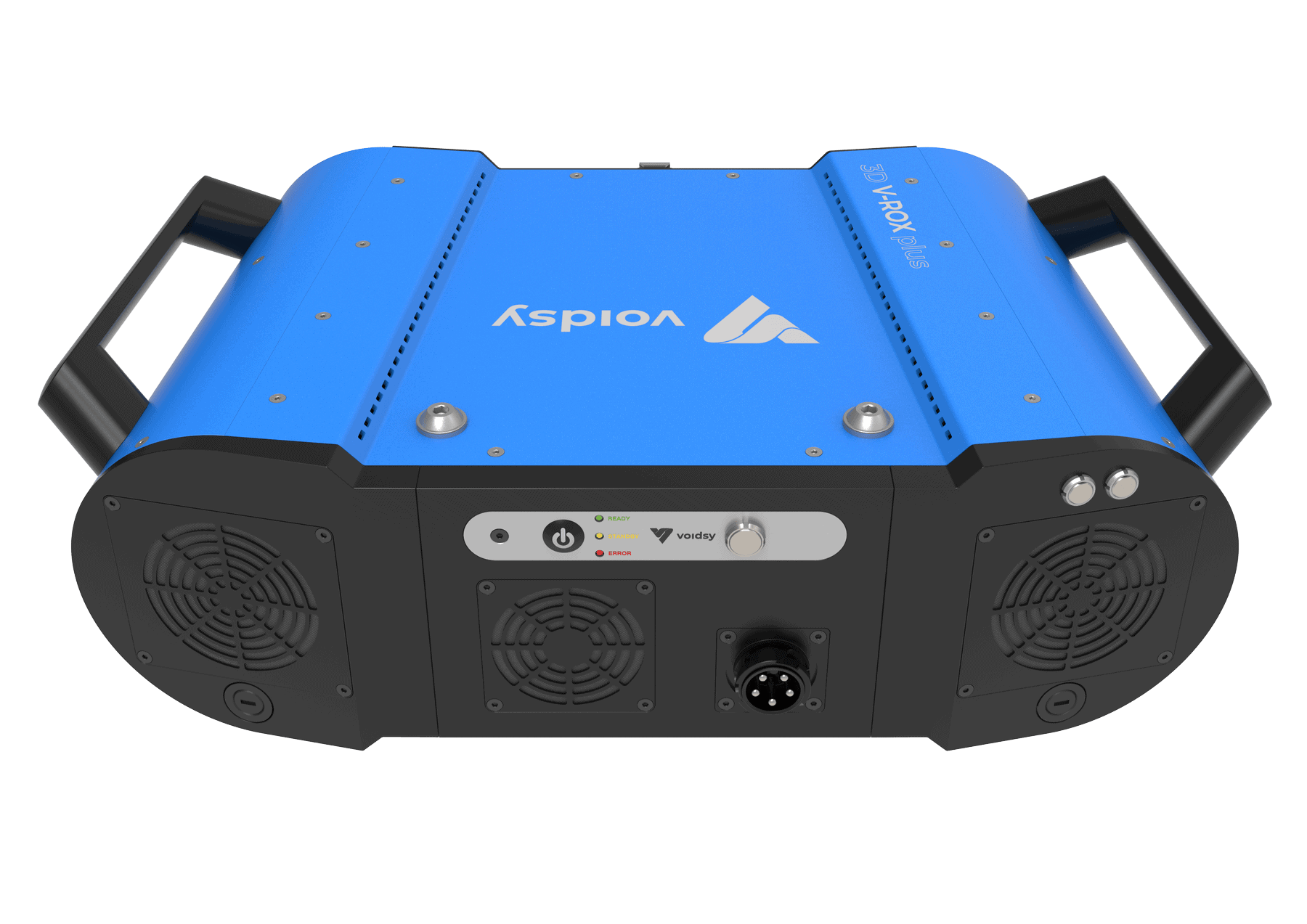

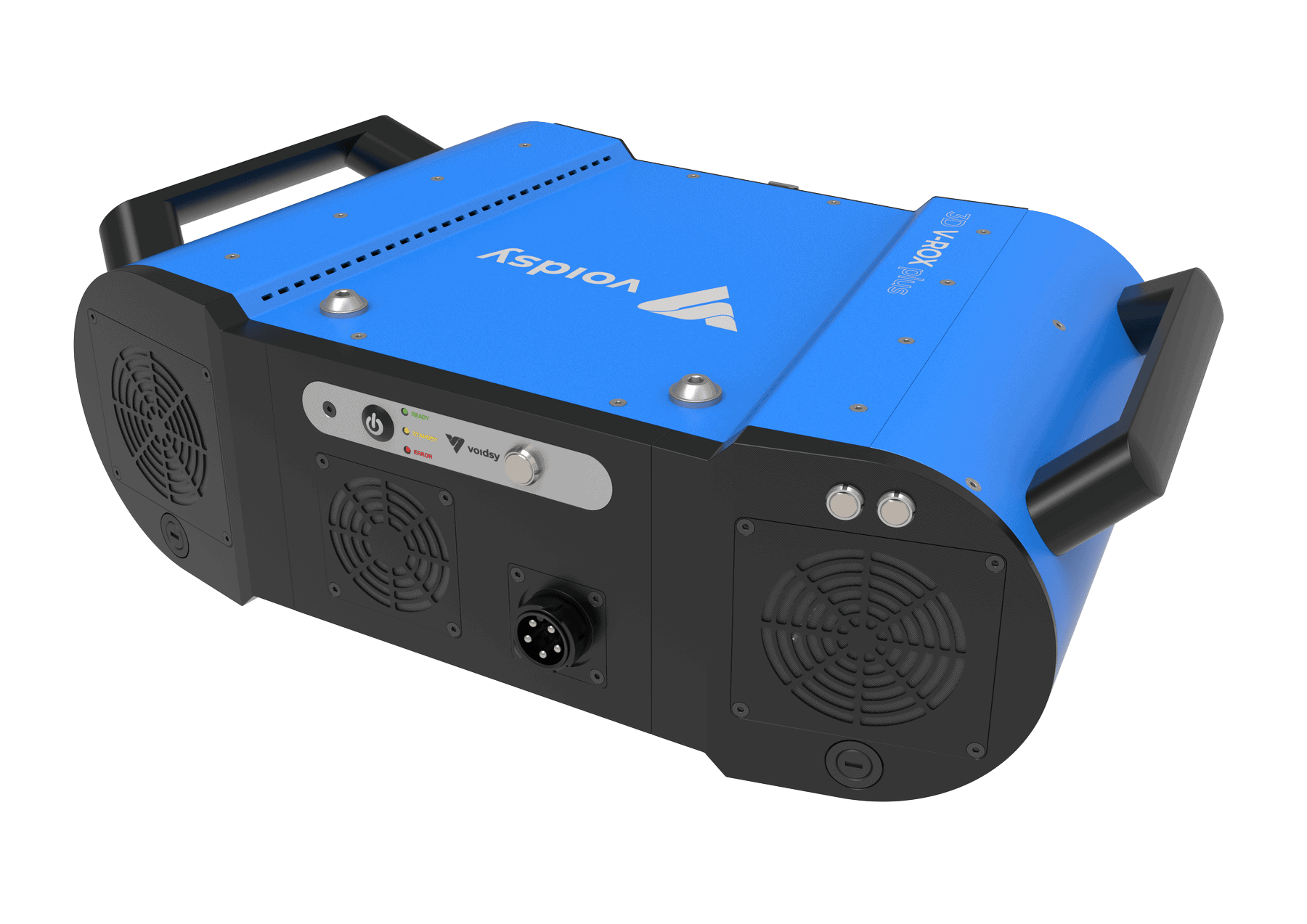

Connections

1GBase-T IEEE 802.3ab
Auxiliary Connector

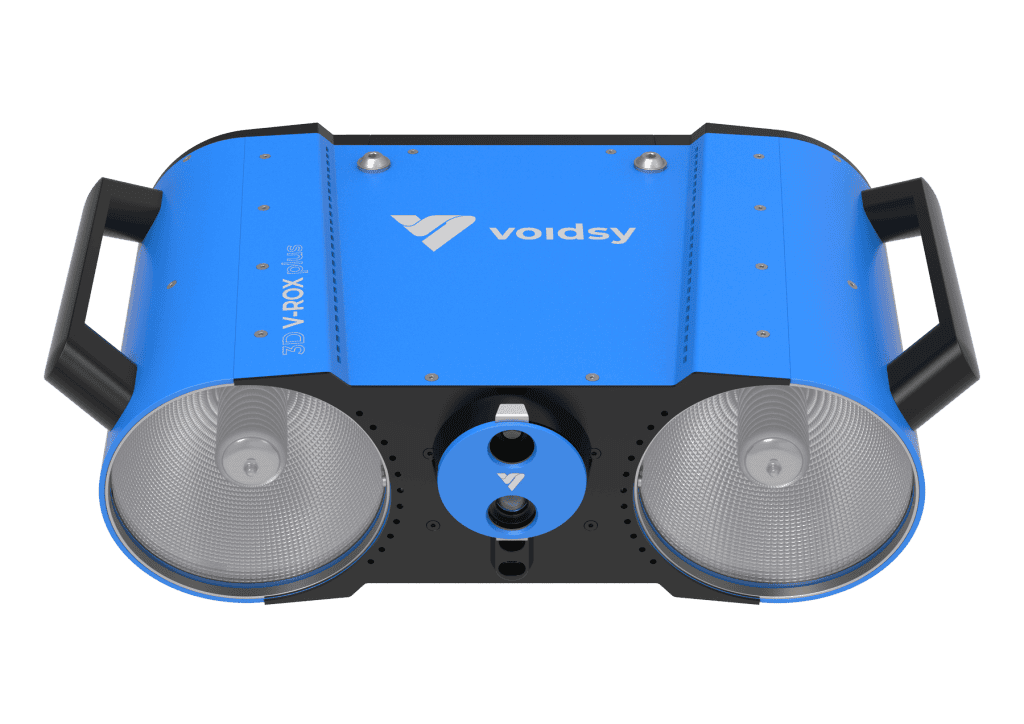

Integrated Assistance Systems

Ergonomic handles
RGB camera
Cross-hair positioning laser
Laser distance measurement

Download 3D V-ROX plus product sheet

Contact Sales Team

Maximum Efficiency and Information

Designed for high-precision results with minimal effort on-site or in the field

Highest Information Density

Combined defect detection and 3D analysis

More Efficient Inspection Processes

Accurate results and reduced inspection times through optimized workflows

Safe Field Application

Reliable results even in complex operational environments

Contact Sales Team

voidsy Software for 3D V-ROX plus

Three versions of the voidsy Inspect software platform are available for thermographic data analysis. The recommended software for the voidsy V-ROX is voidsy Inspect Professional.

voidsy Inspect Basic

Fast entry into thermographic inspection workflows

Recommended for V-ROX

voidsy Inspect Advanced

Extended analysis capabilities for more demanding inspection tasks

Recommended for V-ROX plus

voidsy Inspect Professional

Full feature set for thermographic 3D analysis and complex inspection workflows

Recommended for 3D V-ROX and 3D V-ROX plus

Learn more about the software

Our services

Lab tests

voidsy gmbh provides a wide range of services to its customers for thermographic material and components testing, from initial prototype test reports to batch measurements. Having more than 15 years of experience in measurement and testing technology combined with a highly qualified staff (EN ISO 9712 Level 3), one of our strengths is the consulting service for your inspection task.

Inquire lab test

On-site inspection tasks

With our mobile systems, we offer fast and cost-effective solutions for your on-site inspection tasks. Our services cover on-site data acquisition, data processing, development and set-up of the test equipment as well as evaluation and analysis.

Inquire on-site inspection

Education & Training

We offer many years of experience in training and education of testing personnel according to EN ISO 9712 and advanced training in the field of basics, instrumentation and application of active thermography for various product sectors.

Inquire training
