voidsy 3D V-ROX

Advanced defect analysis through thermographic 3D reconstruction

The voidsy 3D V-ROX extends thermographic inspection with advanced three-dimensional defect analysis. Based on thermal measurement data, the system enables detailed evaluation of defect structures and defect depth while maintaining fast and contactless inspection workflows. It is particularly suited for automated applications requiring enhanced analytical insight.

Applications and Benefits

  • Automated inspection workflows with advanced analysis requirements
  • Evaluation of defect size and depth
  • Data-driven quality assurance and decision-making

Recommended software: voidsy Inspect Professional

Watch 3D V-ROX Demo
Request Whitepaper for free

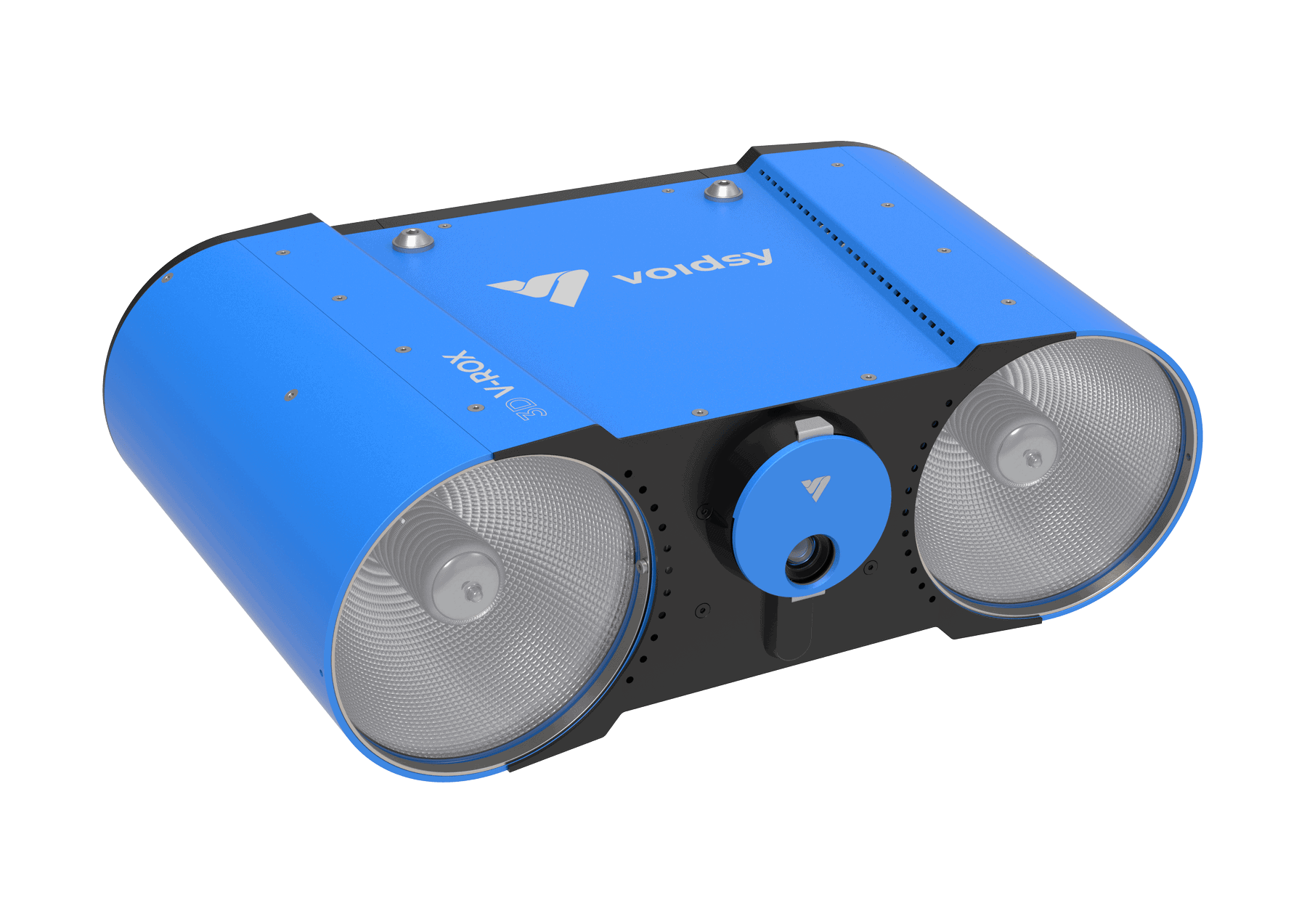

3d v rox 1 pers front

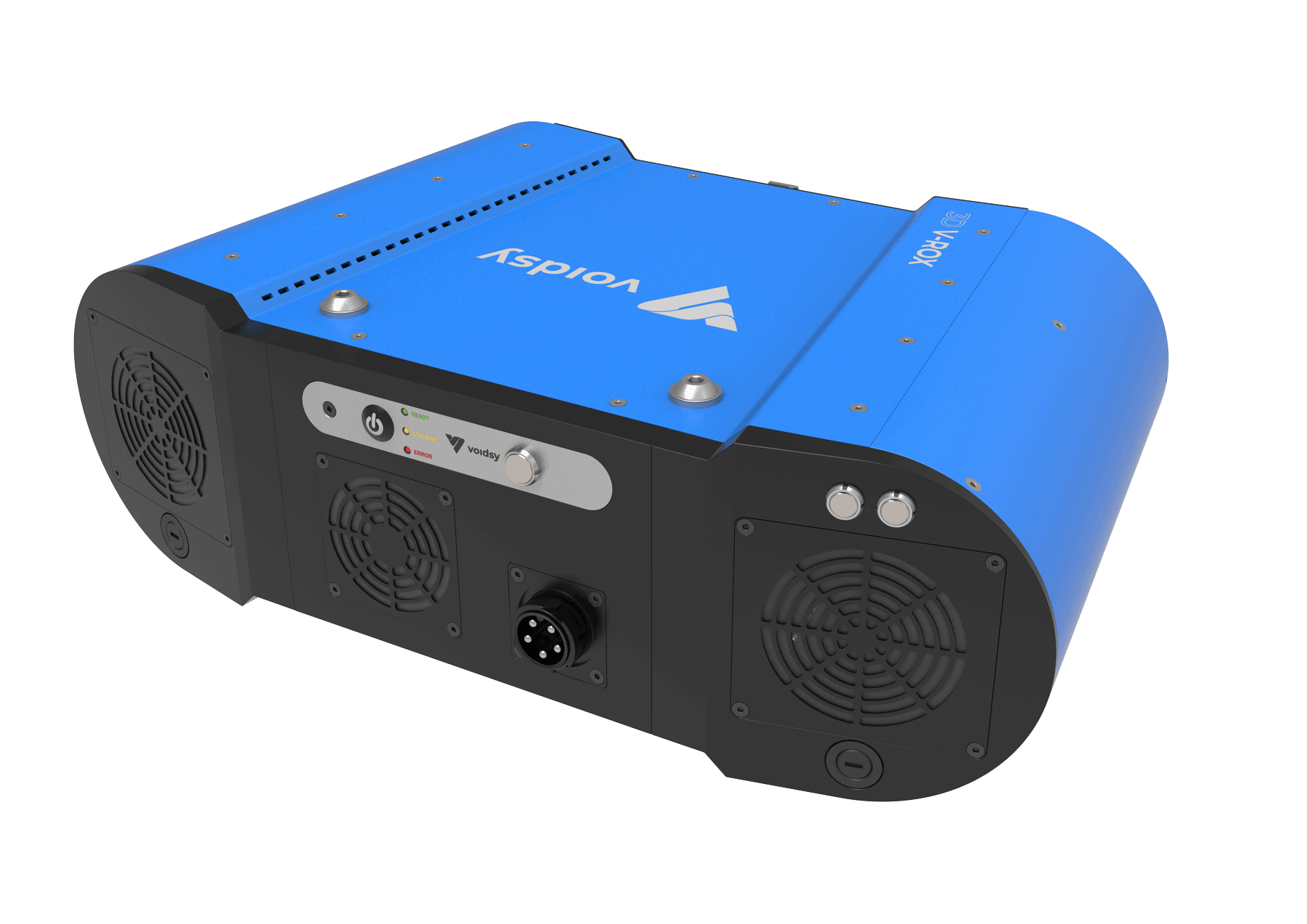

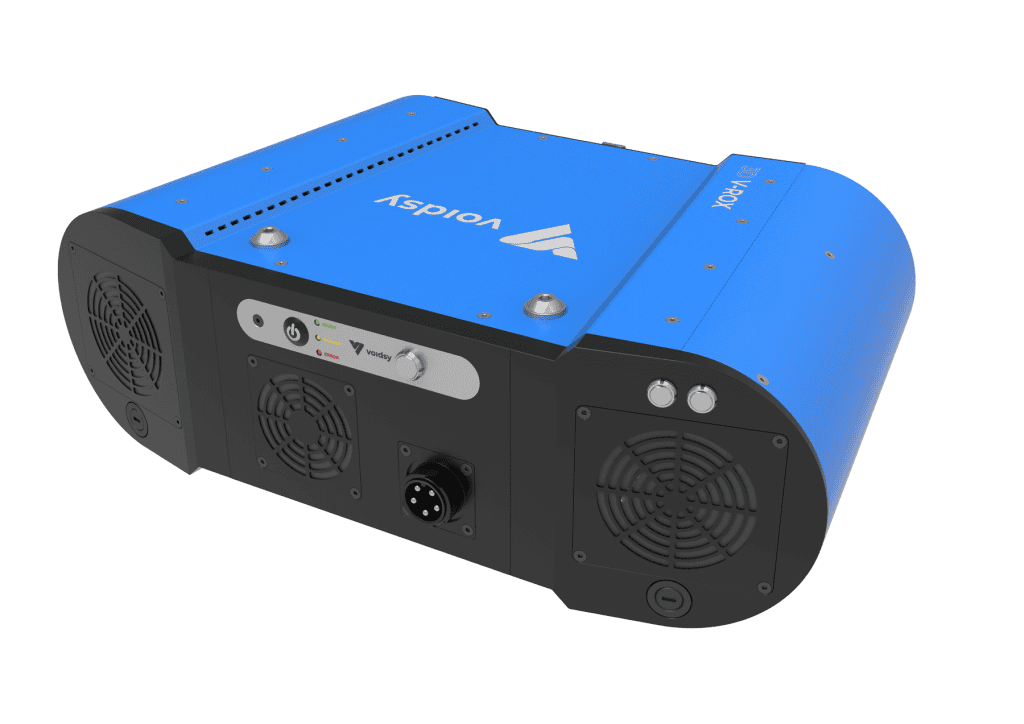

3d v rox 2 pers back

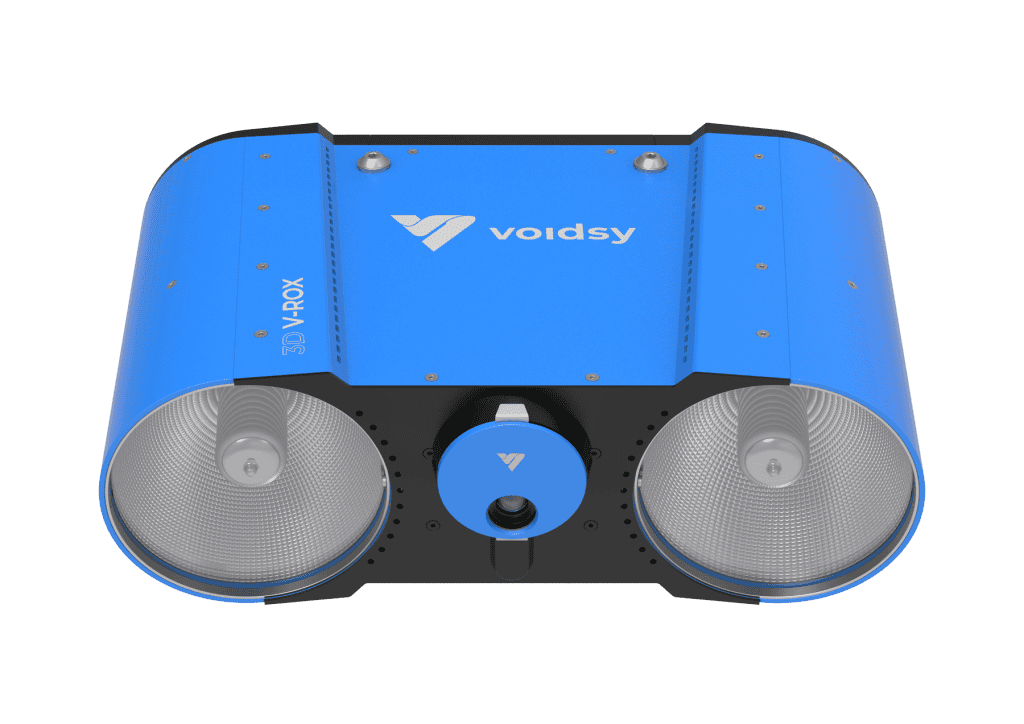

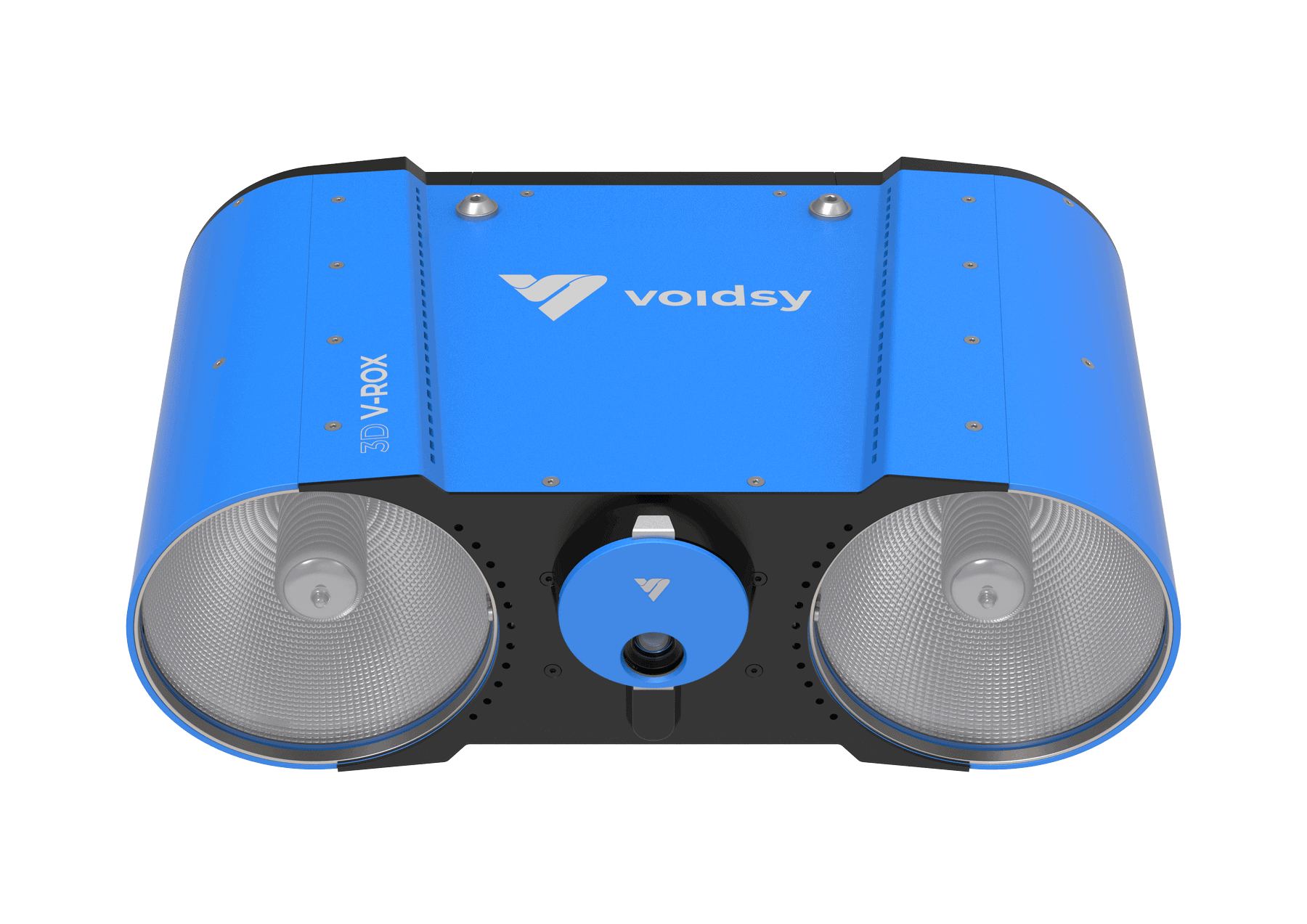

3d v rox 3 front

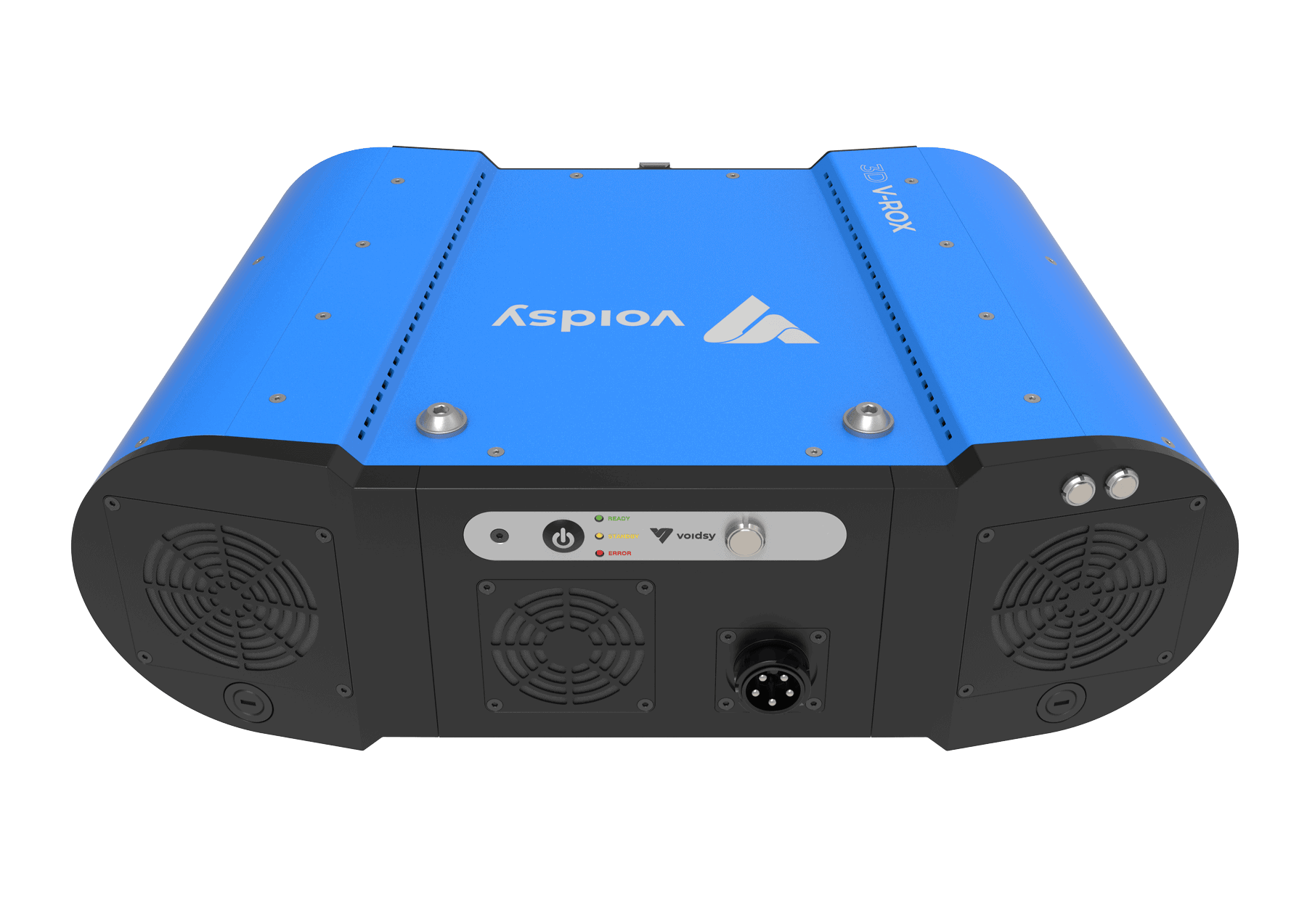

3d v rox 4 back

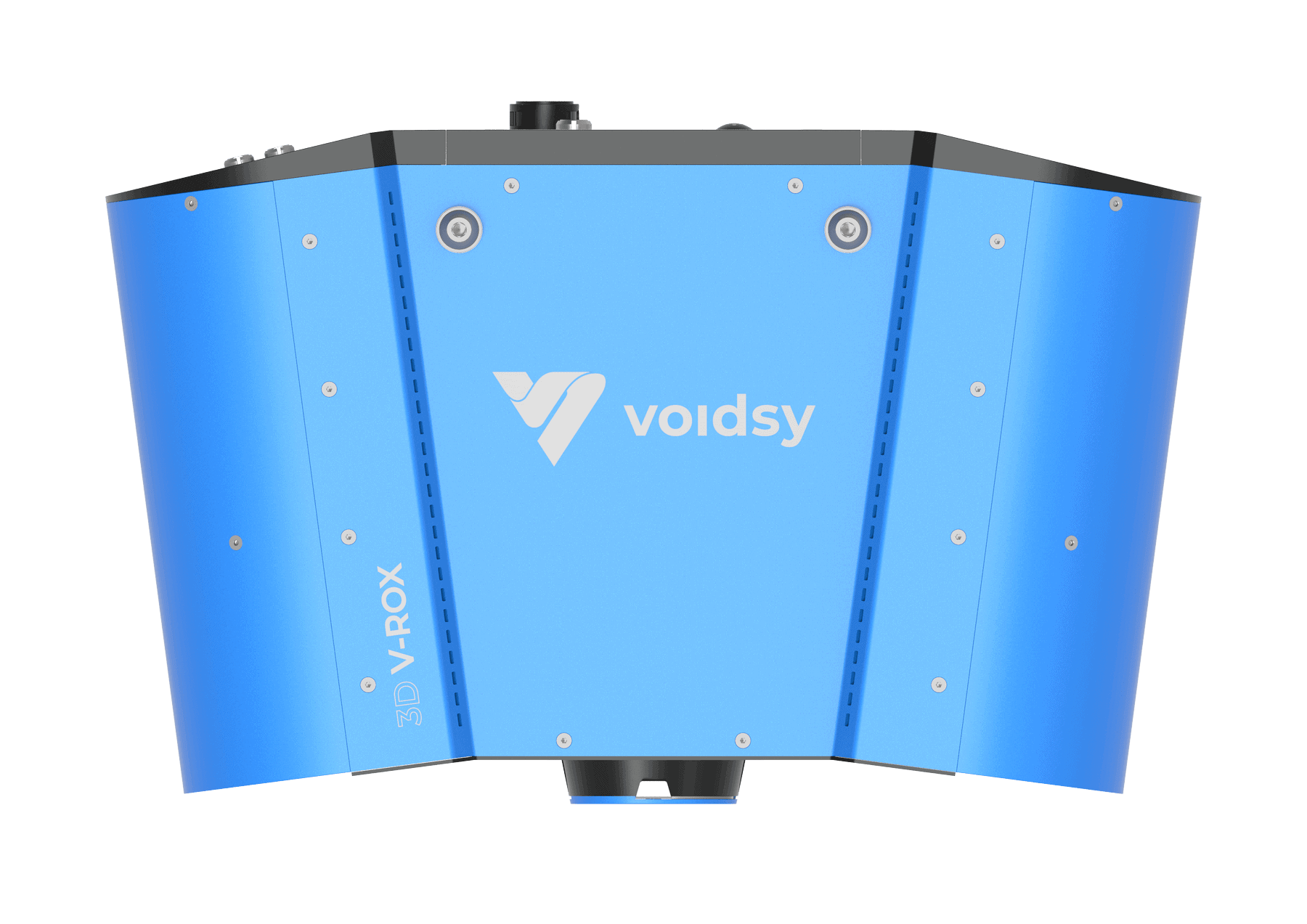

3d v rox 5 top

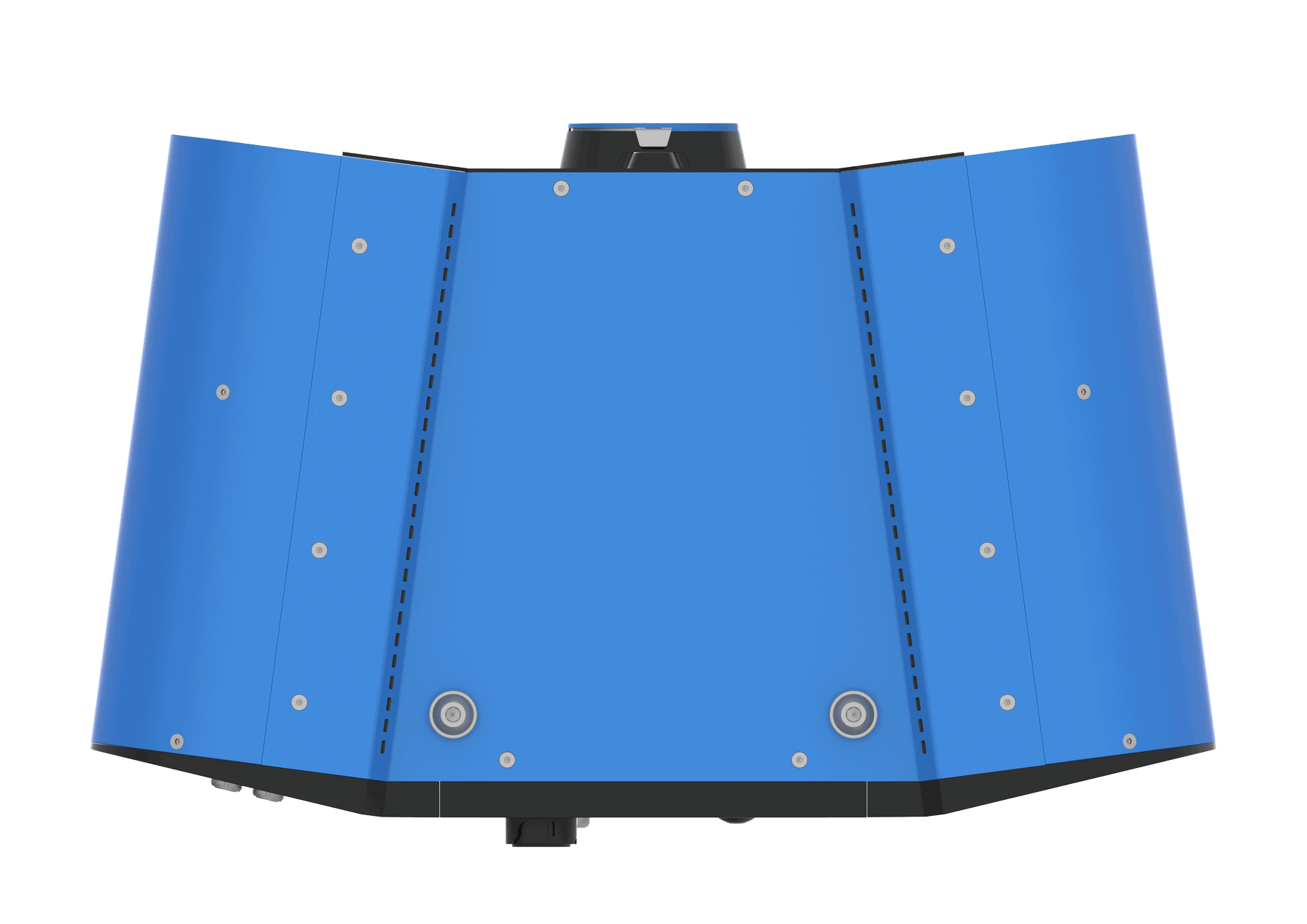

3d v rox 7 bottom b

System Benefits

3D Defect Analysis

Spatial visualization for more precise evaluation of structures and defect characteristics

Extended Information Depth

Additional insight into defect size, structure and depth

Efficient Data Evaluation

Fast analysis through integrated signal processing

Mobile Deployment

Suitable for flexible inspection tasks across different environments

Technical Specifications

System

Compact sensor head: 423 mm × 270 mm × 130 mm
Total weight: < 6.5 kg

Inspection Parameters

Spatial resolution / depth resolution: up to 610 μm / 100 μm
Inspection area: up to 400 mm × 320 mm

Power Supply

4.3 kW @ 230/400 V~ / 50 Hz or
4.3 kW @ 230 V~ / 50 Hz or
4.6 kW @ 120/240 V~ / 60 Hz

Connections

1GBase-T IEEE 802.3ab
Auxiliary Connector
Download 3D V-ROX product sheet
Contact Sales Team

More Insight for Better Decisions

Designed for inspection tasks beyond basic defect detection

Increased Information Density

Additional insight into defect structure and depth through 3D reconstruction

Improved Decision-Making

Detailed evaluation of material conditions and component integrity

Reduced Inspection Effort

Minimized need for follow-up inspections due to higher first-pass information quality

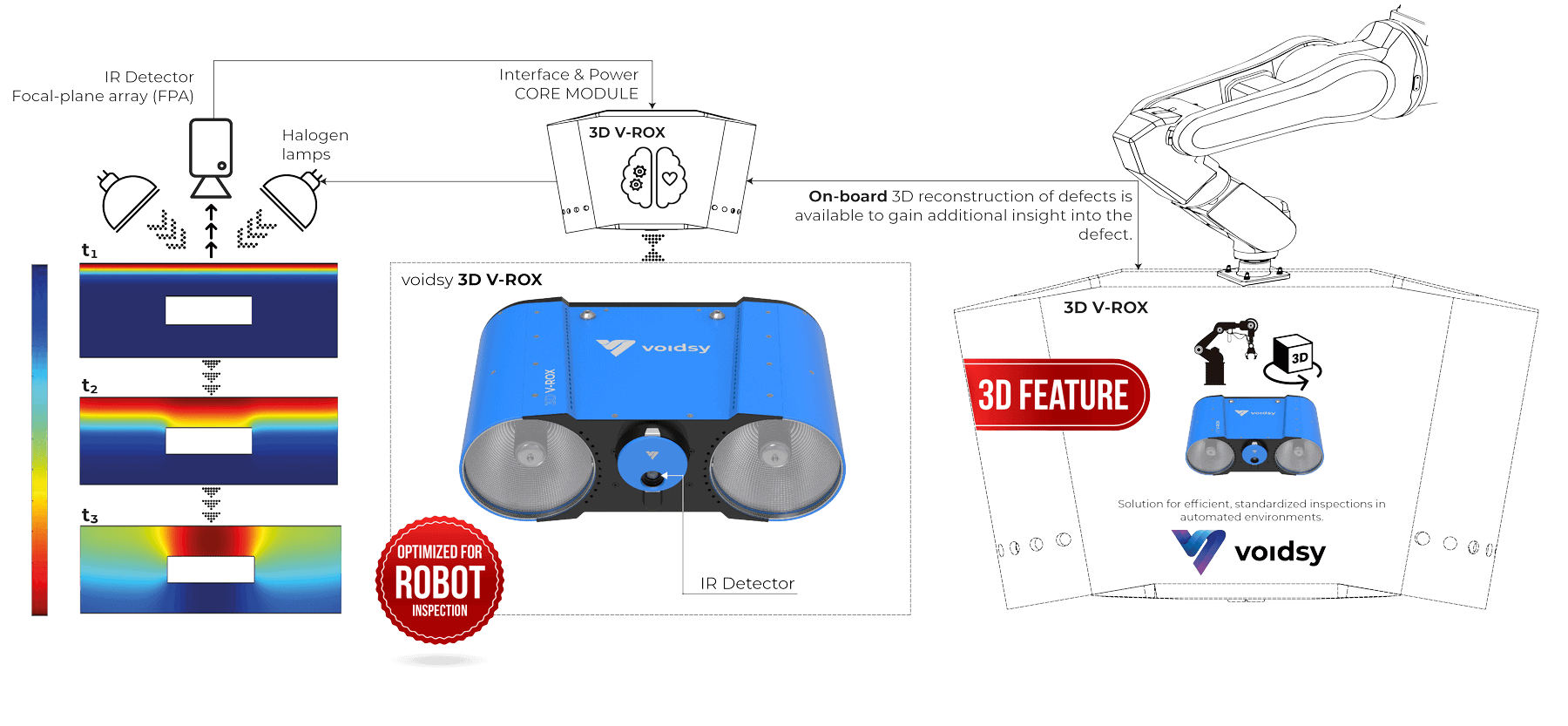

top features 1080 3d vrox
Contact Sales Team

voidsy Software for 3D V-ROX

Three versions of the voidsy Inspect software platform are available for thermographic data analysis. The recommended software for the voidsy V-ROX is voidsy Inspect Professional.

voidsy Inspect Basic

Fast entry into thermographic inspection workflows
Recommended for V-ROX
  • Core Package: Inspect ℹ
  • Add-on: Sense ℹ
  • Add-on: Guide ℹ
  • Add-on: Filter ℹ
  • Add-on: Size ℹ
  • Add-on: Reconstruct ℹ
  • Add-on: 3D View ℹ

voidsy Inspect Advanced

Extended analysis capabilities for more demanding inspection tasks
Recommended for V-ROX plus
  • Core Package: Inspect ℹ
  • Add-on: Sense ℹ
  • Add-on: Guide ℹ
  • Add-on: Filter ℹ
  • Add-on: Size ℹ
  • Add-on: Reconstruct ℹ
  • Add-on: 3D View ℹ

voidsy Inspect Professional

Full feature set for thermographic 3D analysis and complex inspection workflows
Recommended for 3D V-ROX and 3D V-ROX plus
  • Core Package: Inspect ℹ
  • Add-on: Sense ℹ
  • Add-on: Guide ℹ
  • Add-on: Filter ℹ
  • Add-on: Size ℹ
  • Add-on: Reconstruct ℹ
  • Add-on: 3D View ℹ
Learn more about the software

Funded by tech2b and Preseed/Seedfinancing - Deep Tech of BMWET and BMIMI, handled by aws.
This project is funded by FFG. www.ffg.at

BMWET Logo
BMIMI Logo
tech2b logo web transparent e1666045213483
aws share
ffg logo web

Our services

voidsy v rox service in lab

Lab tests

voidsy gmbh provides a wide range of services to its customers for thermographic material and components testing, from initial prototype test reports to batch measurements. Having more than 15 years of experience in measurement and testing technology combined with a highly qualified staff (EN ISO 9712 Level 3), one of our strengths is the consulting service for your inspection task.
Inquire lab test
voidsy v rox service on site

On-site inspection tasks

With our mobile systems, we offer fast and cost-effective solutions for your on-site inspection tasks. Our services cover on-site data acquisition, data processing, development and set-up of the test equipment as well as evaluation and analysis.
Inquire on-site inspection
voidsy v rox training

Education & Training

We offer many years of experience in training and education of testing personnel according to EN ISO 9712 and advanced training in the field of basics, instrumentation and application of active thermography for various product sectors.
Inquire training
