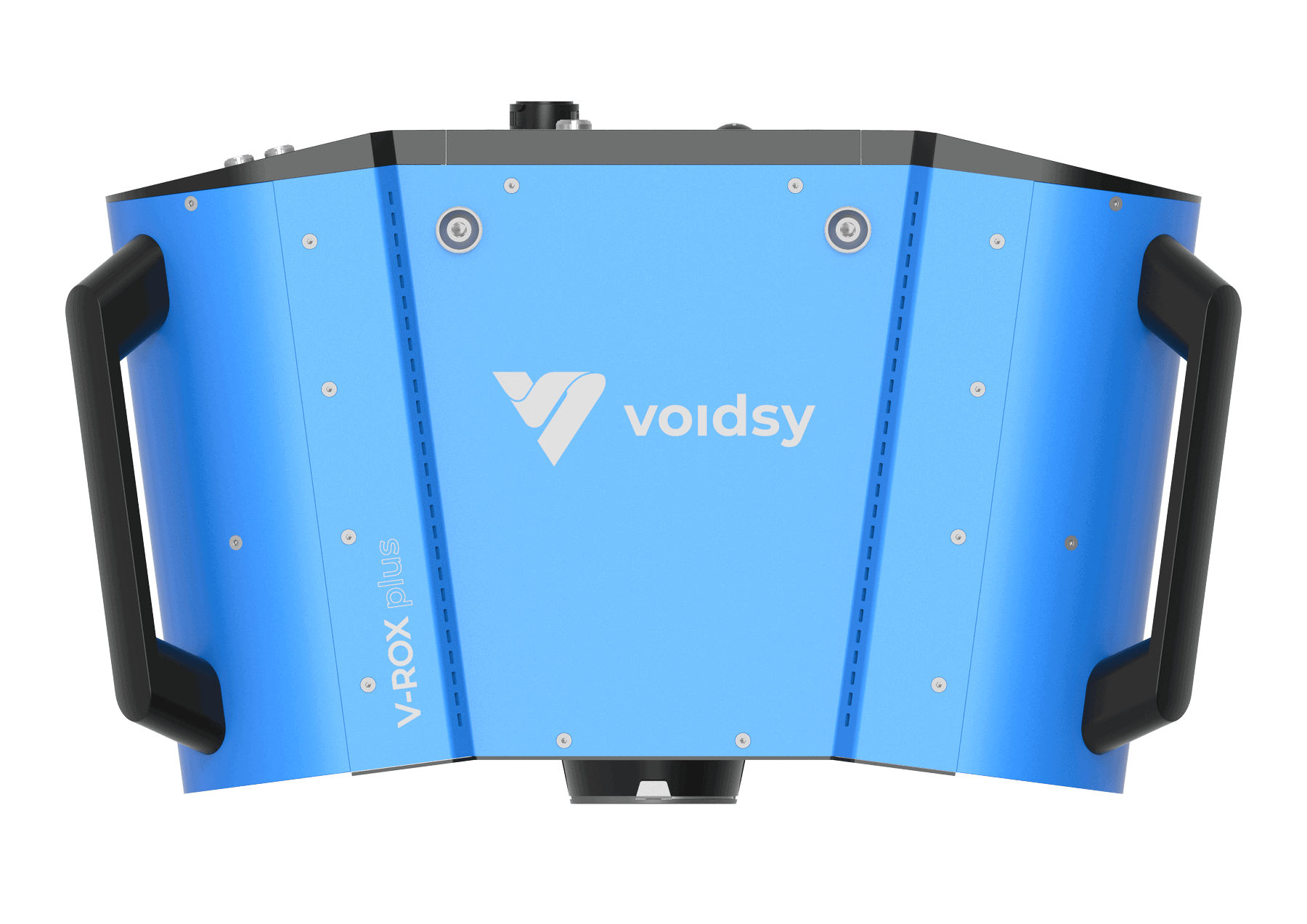

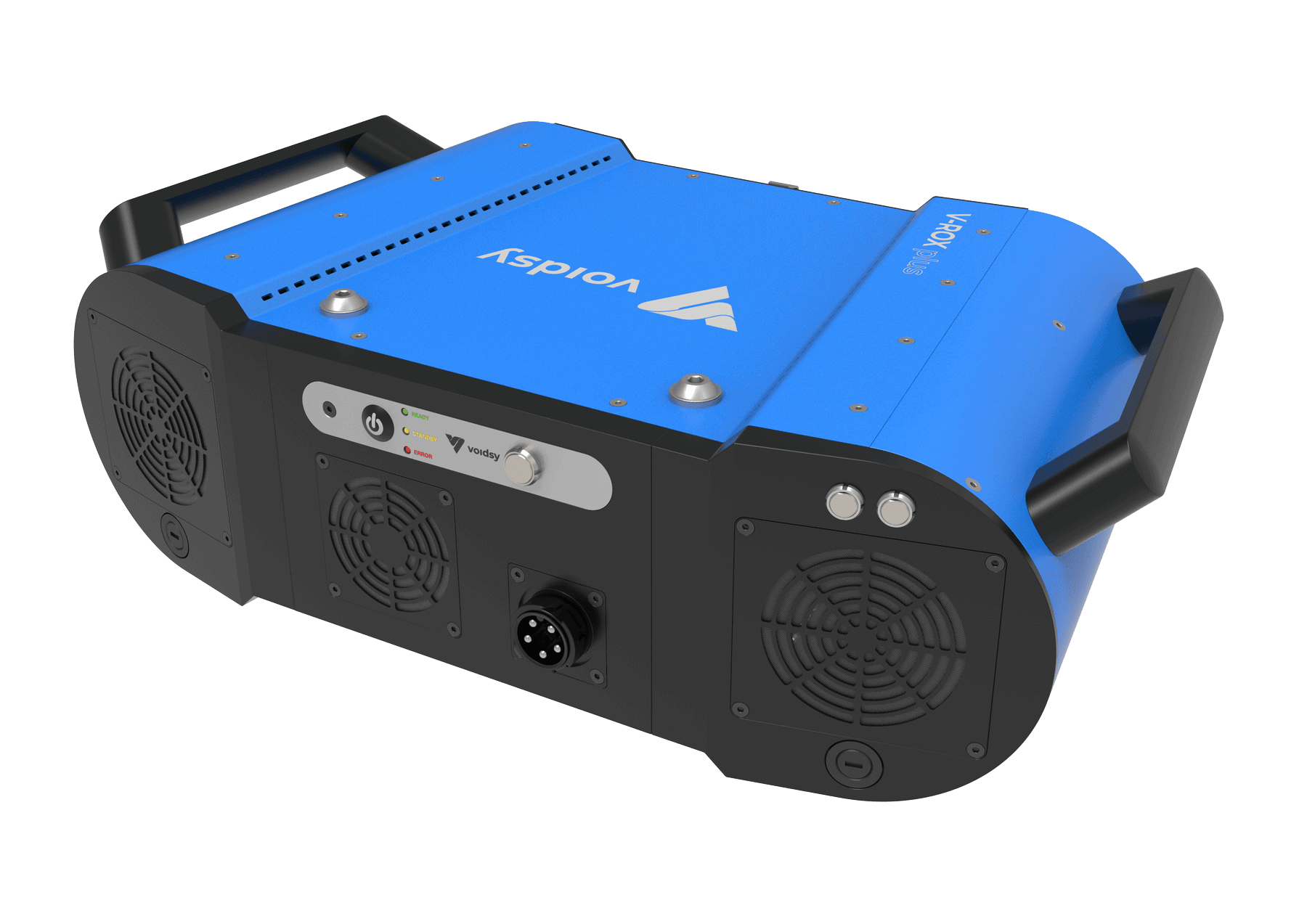

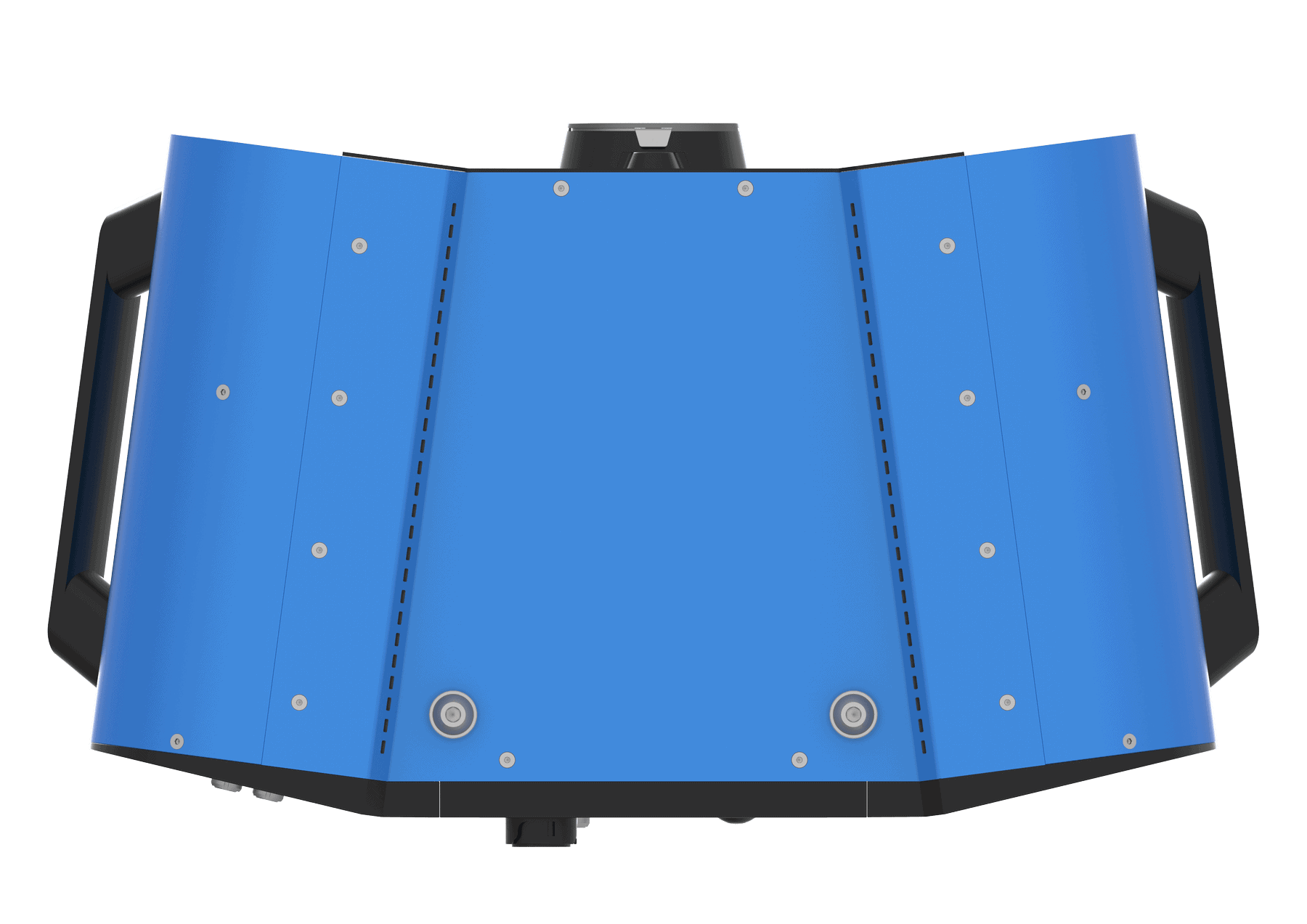

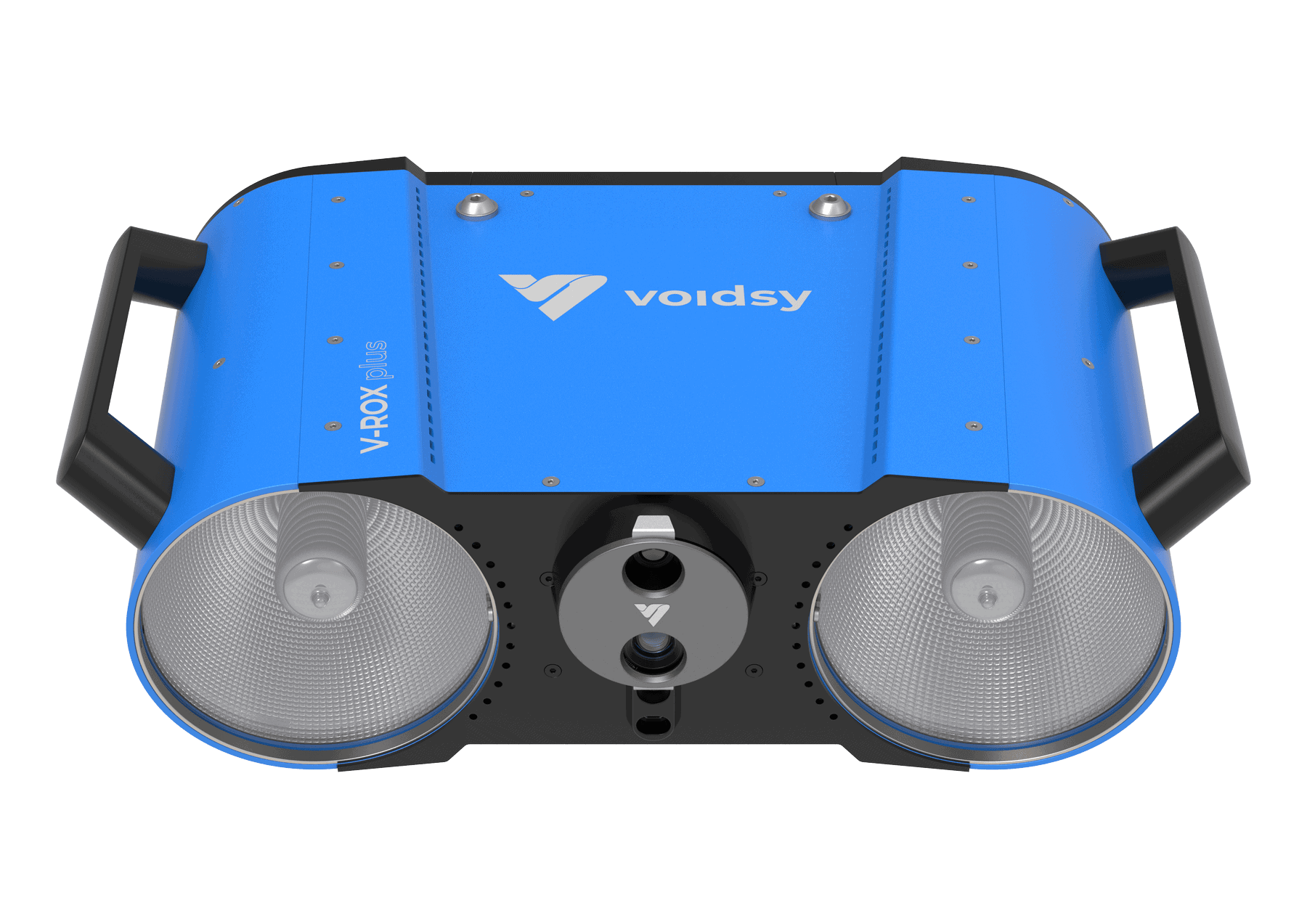

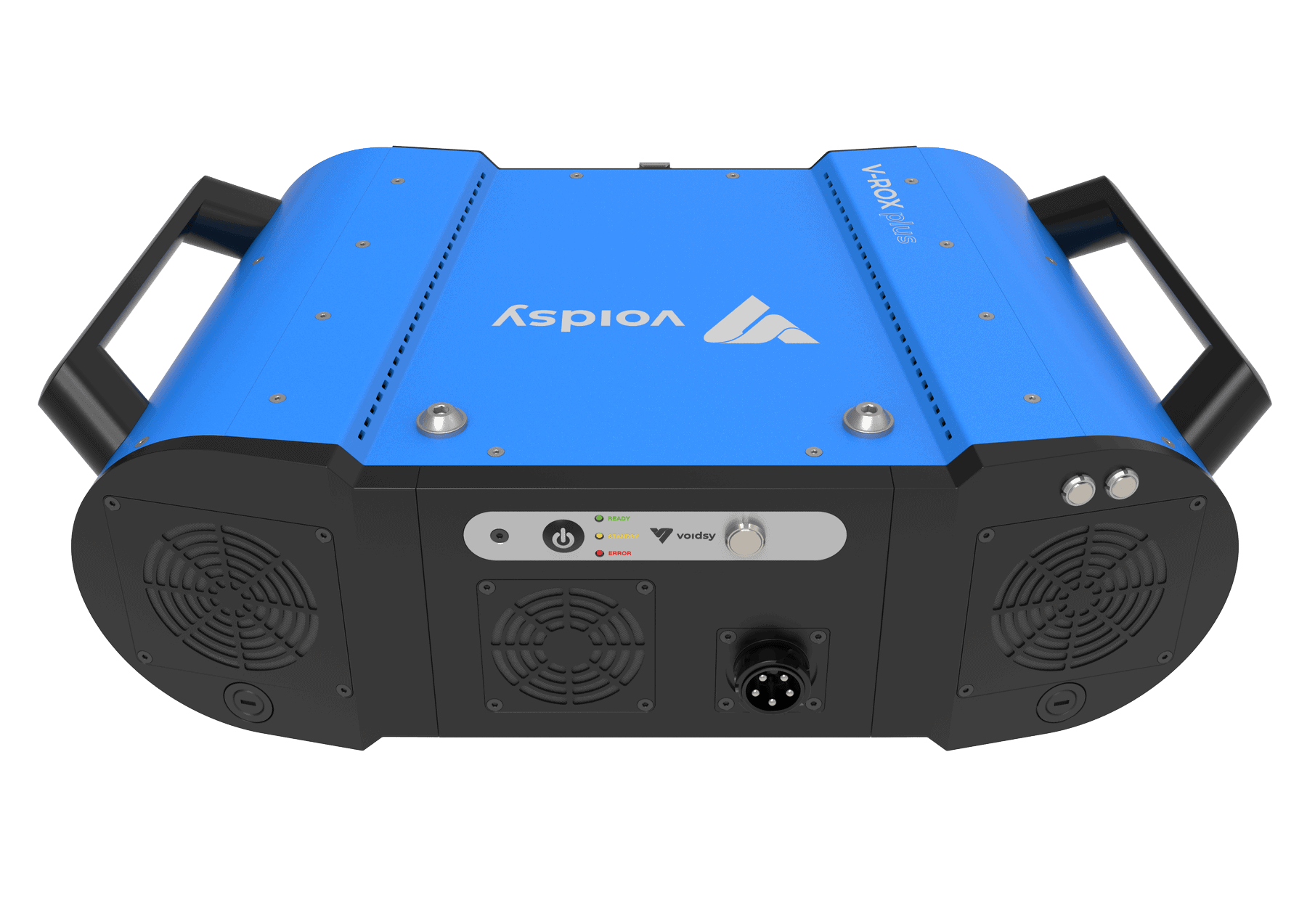

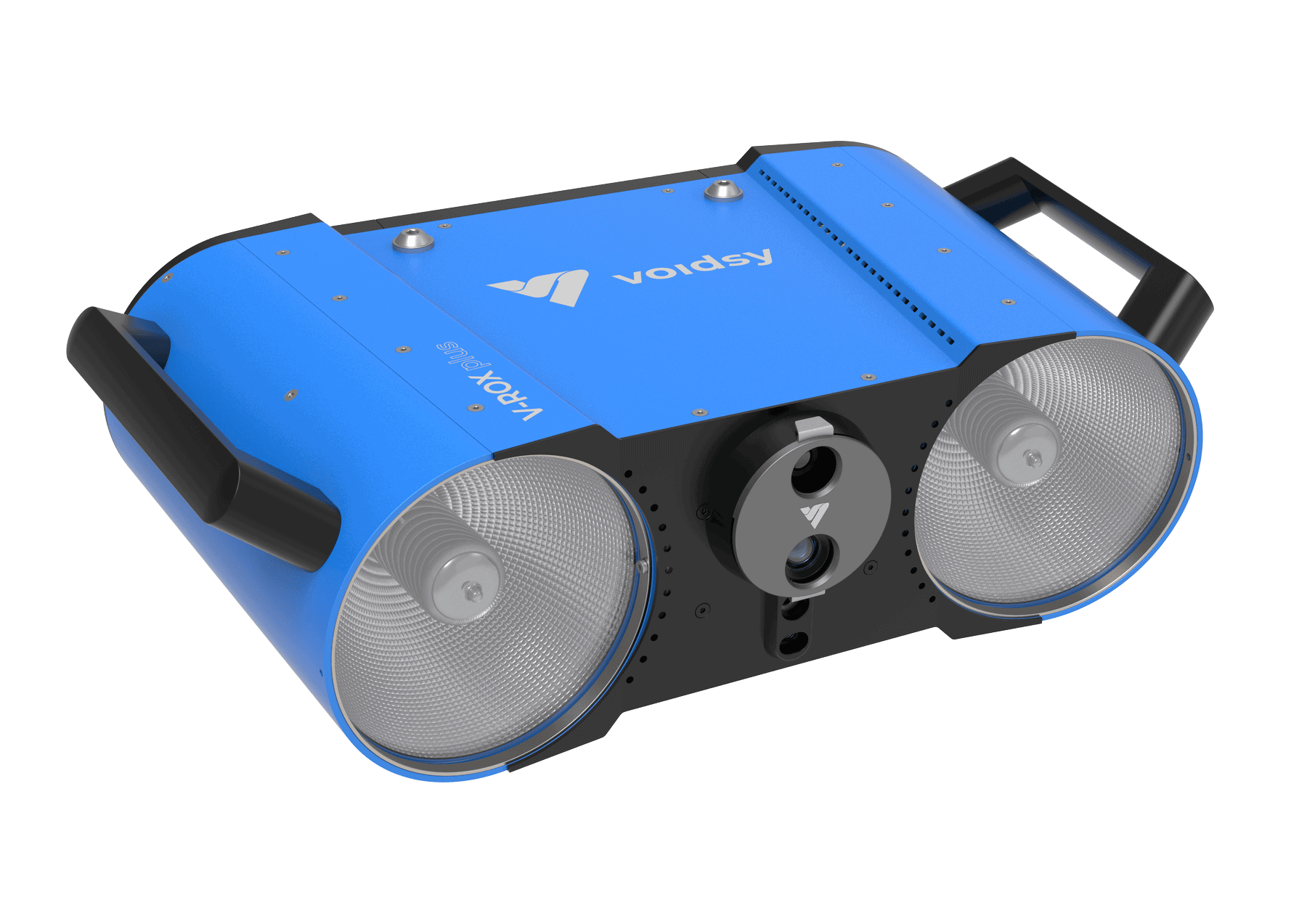

voidsy V-ROX plus 

Assisted Inspection for Precise and Reproducible Results

The voidsy V-ROX plus is designed for operators performing manual inspections who benefit from integrated assistance systems during the inspection process. The system supports precise sensor positioning and efficiently documented inspections, making it especially suitable for mobile and flexible field applications.

Applications and Benefits

Manual inspections with high repeatability
Mobile inspection workflows outside production lines
Guided and traceable inspection processes

Recommended software: voidsy Inspect Advanced

Request Whitepaper for free

System Benefits

Guided Sensor Positioning

Integrated assistance systems for precise alignment and operation

Controlled Measurement Distance

Integrated distance measurement for stable and reproducible inspection results

Integrated Documentation

RGB camera for visual assignment and traceable documentation of inspection results

Mobile Deployment

Suitable for flexible inspection tasks across different environments

Technical Specifications

System

Compact sensor head: 423 mm × 270 mm × 130 mm
Total weight: < 6.5 kg

Inspection Parameters

Spatial resolution / depth resolution: up to 610 μm / 100 μm
Inspection area: up to 400 mm × 320 mm

Power Supply

4.3 kW @ 230/400 V~ / 50 Hz or
4.3 kW @ 230 V~ / 50 Hz or
4.6 kW @ 120/240 V~ / 60 Hz

Connections

1GBase-T IEEE 802.3ab
Auxiliary Connector

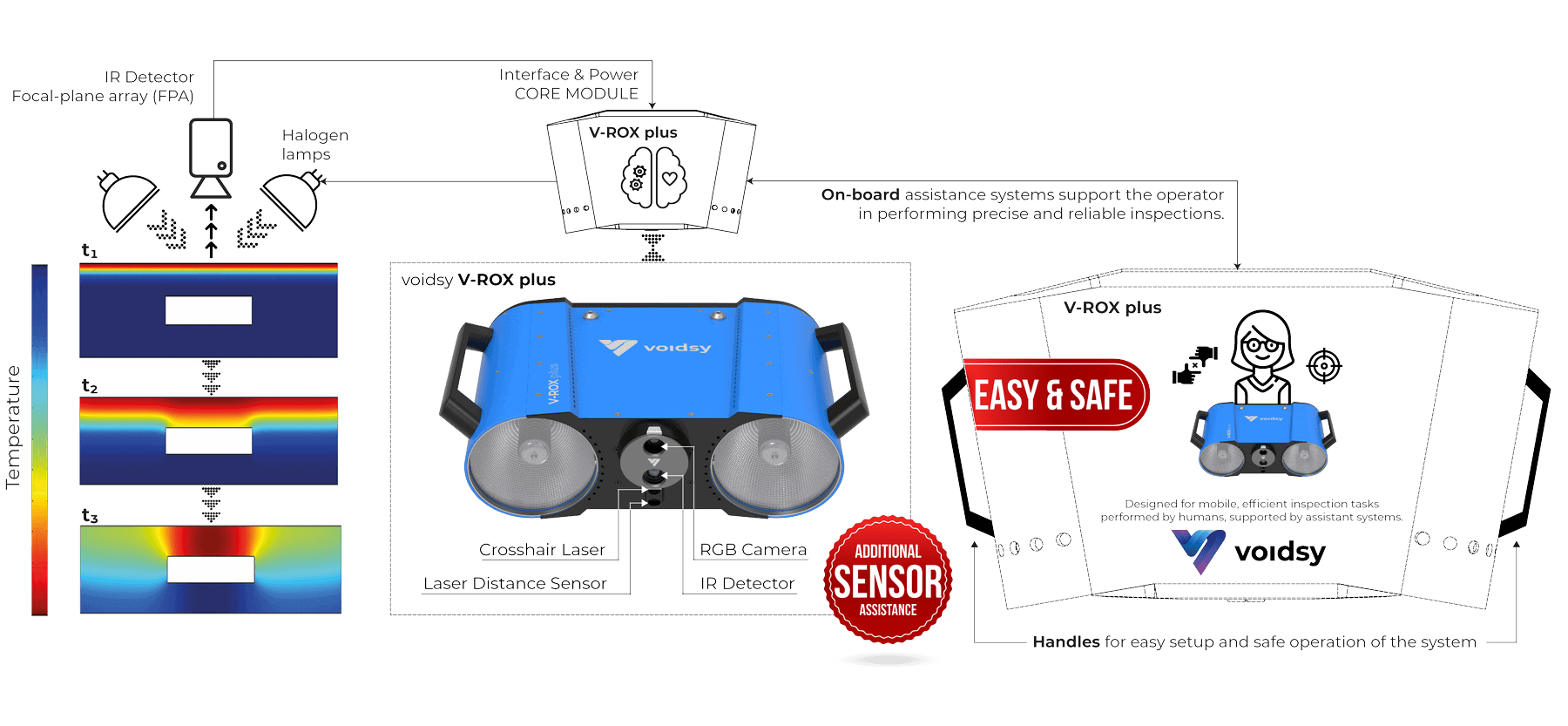

Integrated Assistance Systems

Ergonomic handles
RGB camera
Cross-hair positioning laser
Laser distance measurement

Download V-ROX plus product sheet

Contact Sales Team

Safe and Guided Inspection

Designed for consistent inspection results regardless of operator or application environment

Reduced Operational Complexity

Reduced inspection effort through guided workflows

Minimized Operation Error

Decreased application-related inconsistencies due to assistance systems

Fast Field Inspection

High efficiency for mobile inspection scenarios

Contact Sales Team

voidsy Software for V-ROX plus

Three versions of the voidsy Inspect software platform are available for thermographic data analysis.
The recommended software for the voidsy V-ROX is voidsy Inspect Advanced

voidsy Inspect Basic

Fast entry into thermographic inspection workflows

Recommended for V-ROX

voidsy Inspect Advanced

Extended analysis capabilities for more demanding inspection tasks

Recommended for V-ROX plus

voidsy Inspect Professional

Full feature set for thermographic 3D analysis and complex inspection workflows

Recommended for 3D V-ROX and 3D V-ROX plus

Learn more about the software

Our services

Lab tests

voidsy gmbh provides a wide range of services to its customers for thermographic material and components testing, from initial prototype test reports to batch measurements. Having more than 15 years of experience in measurement and testing technology combined with a highly qualified staff (EN ISO 9712 Level 3), one of our strengths is the consulting service for your inspection task.

Inquire lab test

On-site inspection tasks

With our mobile systems, we offer fast and cost-effective solutions for your on-site inspection tasks. Our services cover on-site data acquisition, data processing, development and set-up of the test equipment as well as evaluation and analysis.

Inquire on-site inspection

Education & Training

We offer many years of experience in training and education of testing personnel according to EN ISO 9712 and advanced training in the field of basics, instrumentation and application of active thermography for various product sectors.

Inquire training
