The voidsy product family enables non-destructive component inspection through active thermography. The V-ROX series offers a fully scalable inspection platform ranging from efficient 2D inspection to advanced high-resolution 3D defect analysis.
Available for manual operation, assisted inspection workflows or fully automated integration into production lines.

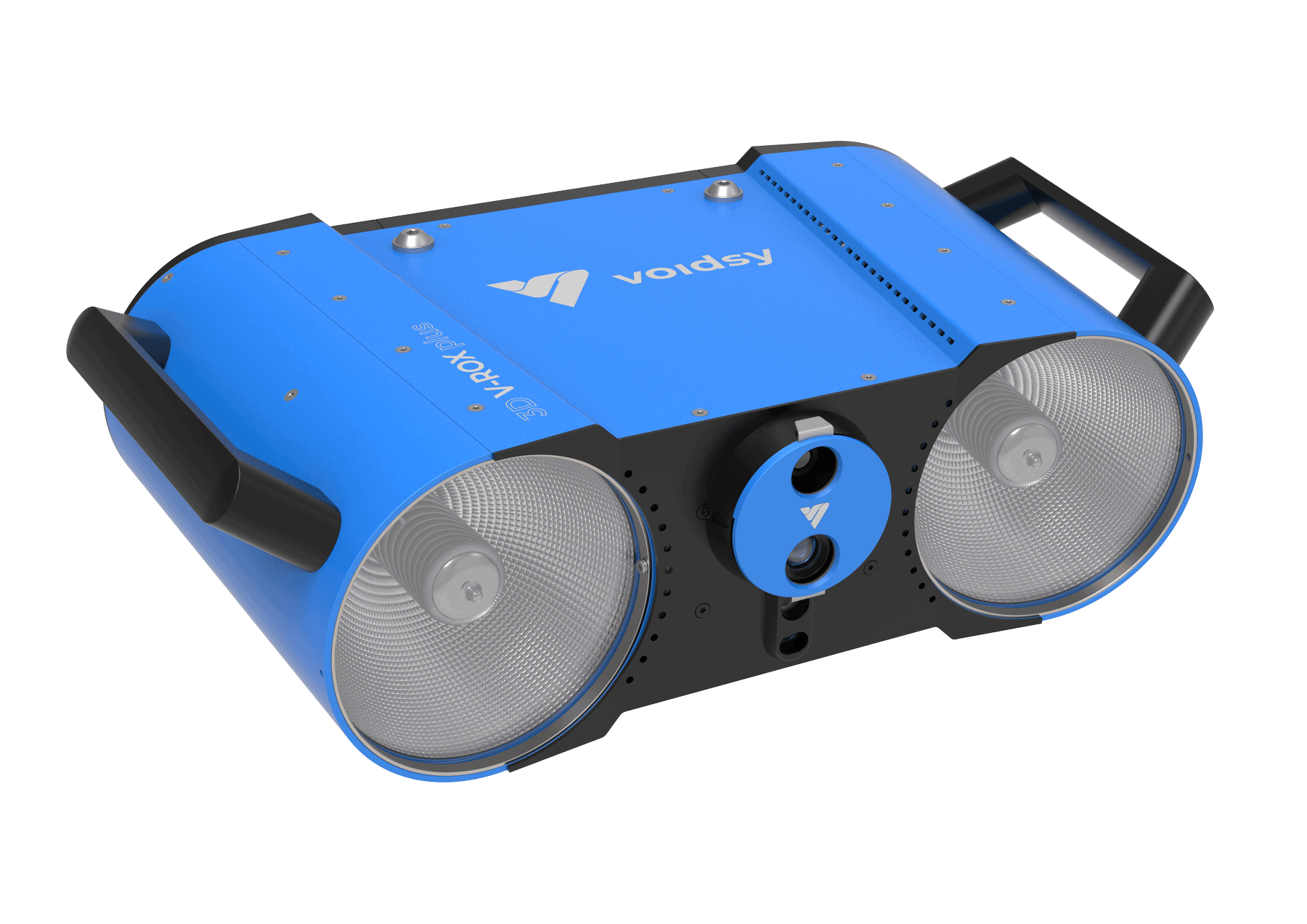

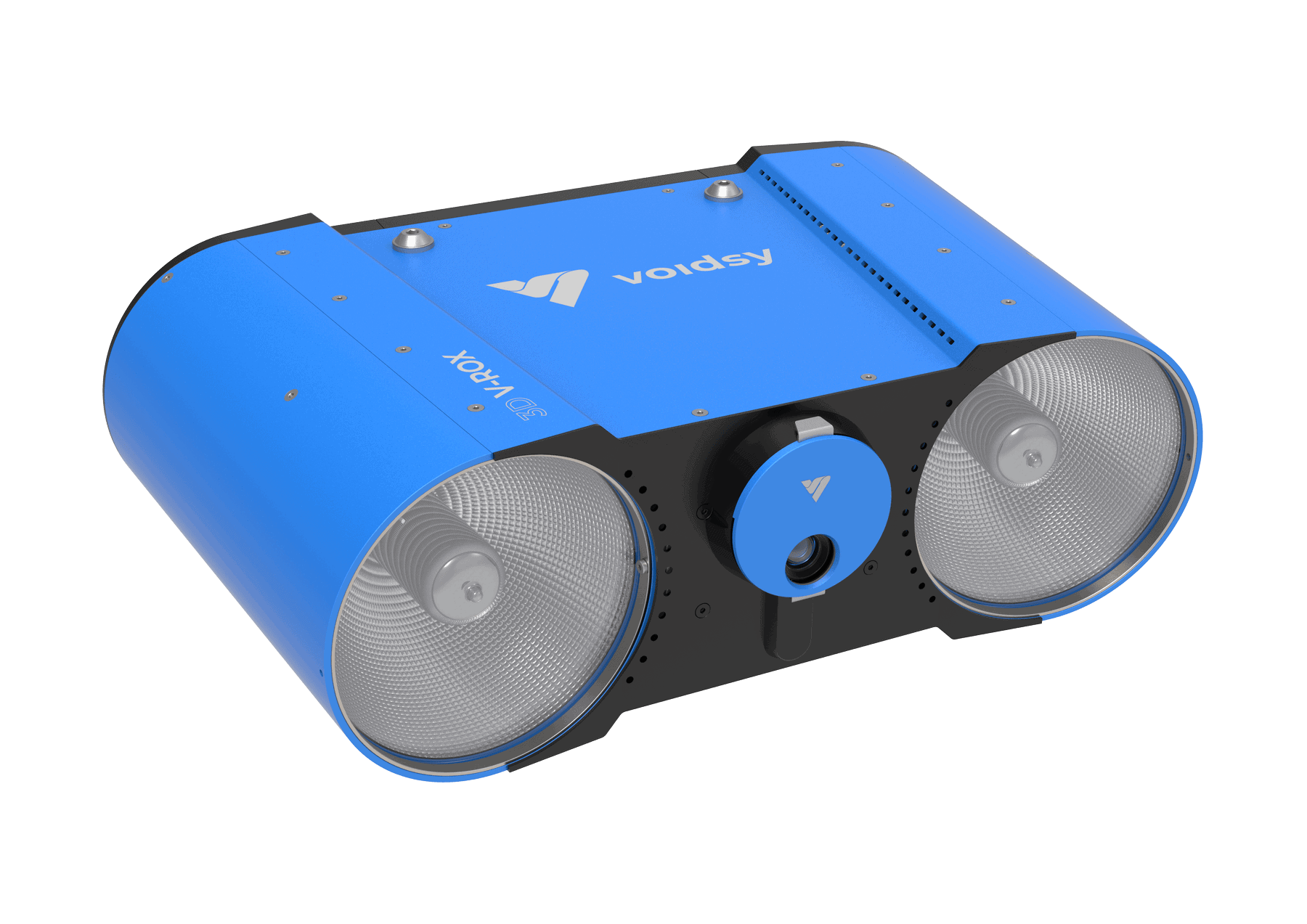

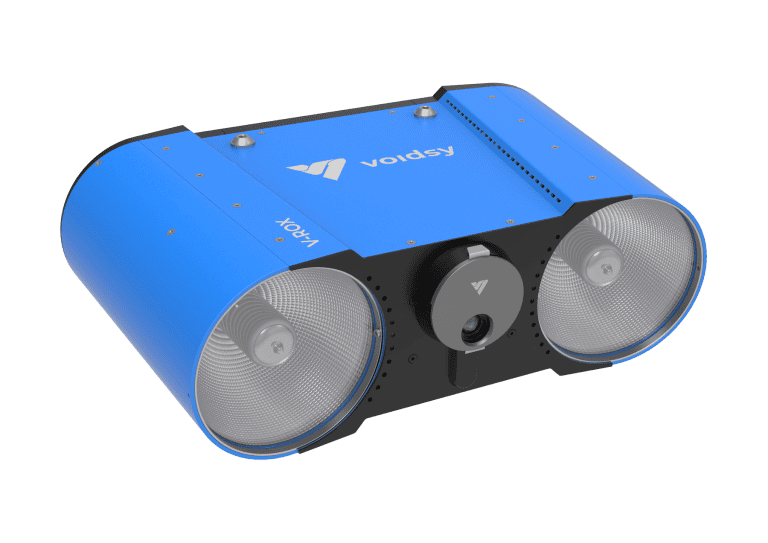

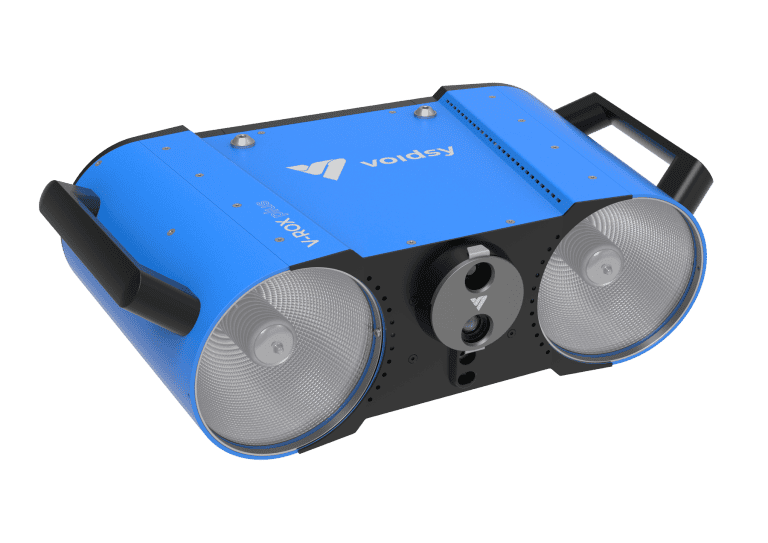

The V-ROX product family covers a wide range of industrial inspection requirements from robust entry-level systems to advanced thermographic 3D analysis.
The system logic is deliberately simple: all systems are built on the same core measurement principle and generate reliable thermographic inspection data. The difference lies only in the level of analytical depth and operator support:
Every organization can choose the inspection solution that best matches its operational requirements. Upgrade options are available at any time.
Inspection requirements can evolve at any time. However, V-ROX is built to evolve with them. All systems within the platform are modular and upgradeable.
All upgrades are performed directly by voidsy without replacing the existing system infrastructure.
This ensures long-term investment security while keeping inspection capabilities technologically up to date.

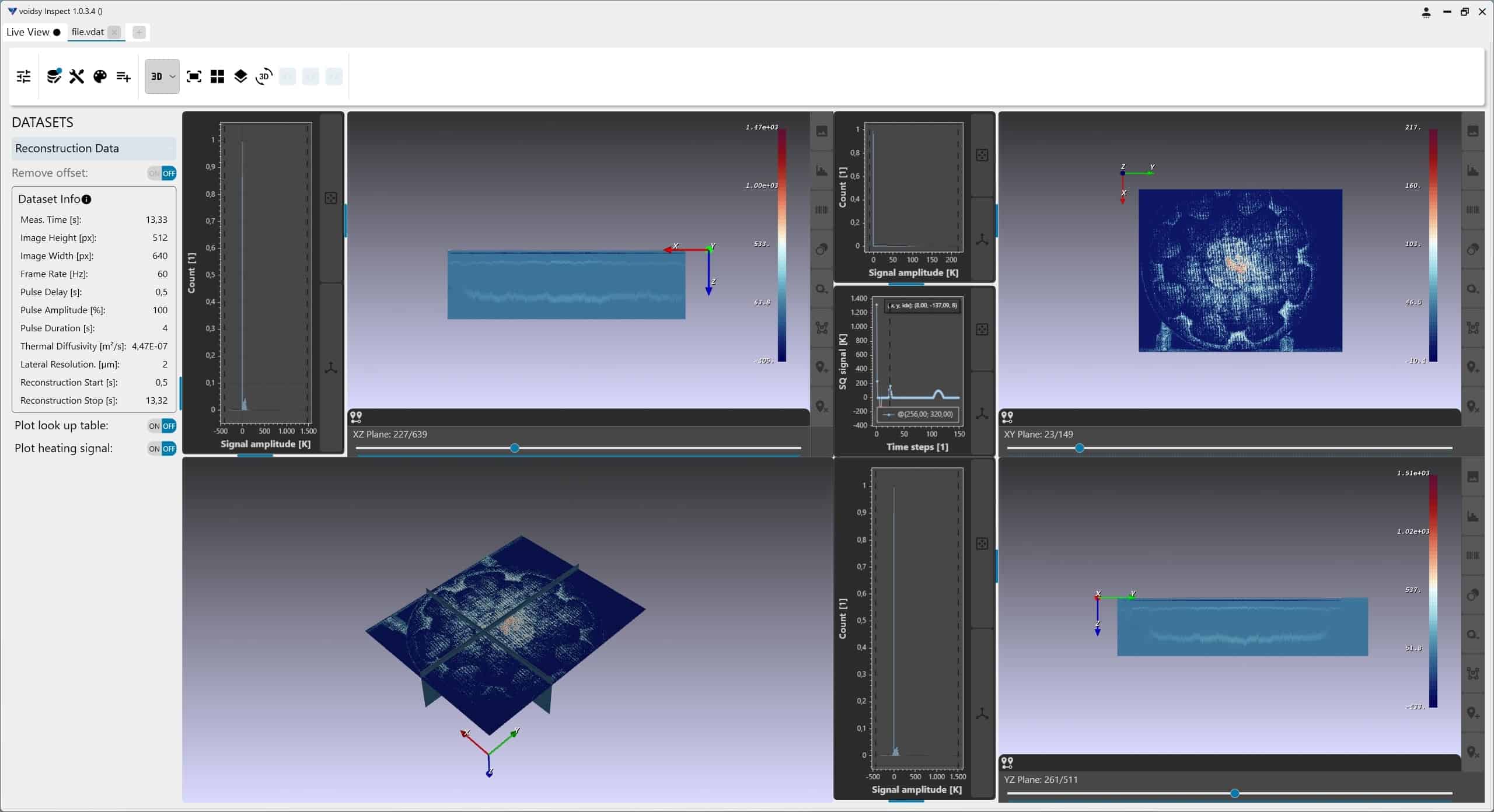

Active thermography is an imaging-based inspection method. Meaningful inspection results only emerge through the right data processing and analysis. voidsy Inspect is a software platform specifically developed for all V-ROX systems.
The software follows the same logic as the hardware platform: all versions are based on one single architecture and can be expanded as inspection requirements grow.
The voidsy software platform is modular by design and scales alongside evolving inspection requirements. Analysis and evaluation capabilities can be added flexibly through software add-ons at any time. These extensions cover a wide range of functionalities from basic inspection workflows to advanced data analysis and enhanced defect evaluation.
Inspect forms the foundation of all thermographic data analysis. The software provides a comprehensive set of tools for the precise and efficient evaluation of thermal inspection data:
Scalable Software Packages
Built on a shared software architecture, voidsy Inspect is available in three scalable configurations:
The add-on Sense provides real-time distance measurement to the inspection object and enables RGB image acquisition for visual documentation. RGB images can also be overlaid with thermographic 2D result images, creating a direct spatial correlation between visual details and thermal data.
The add-on Guide automatically calculates optimized acquisition times for pulsed phase thermography and its ensuing analysis. It also determines ideal recording parameters for data reconstruction to improve both image quality and inspection efficiency while simplifying the measurement workflow.
The add-on Filter enables calculation and 2D visualization of phase images across different frequencies while providing advanced Gaussian, median and homogeneity filtering. It also supports precise separation of the inspection object from the background for improved data quality and enhanced thermal analysis.
The add-on Size enables measurement of the length and area of thermal anomalies, allowing suspicious regions to be highlighted and quantified directly within the software. Identified defects are automatically documented in a structured defect table for traceable analysis and reporting.
The add-on Reconstruct enables 1D visualization of virtual A-scans and virtual 2D C-scans based on reconstructed mirror-source signals. This allows detailed volumetric evaluation by transforming complex thermographic data into intuitive cross-sectional and top-view representations.
The add-on 3D View provides visualization through virtual B-scans and isometric views, enabling full three-dimensional representation of inspection data. Freely selectable sectional planes allow detailed inspection and spatial analysis from any viewing angle.
